4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 77

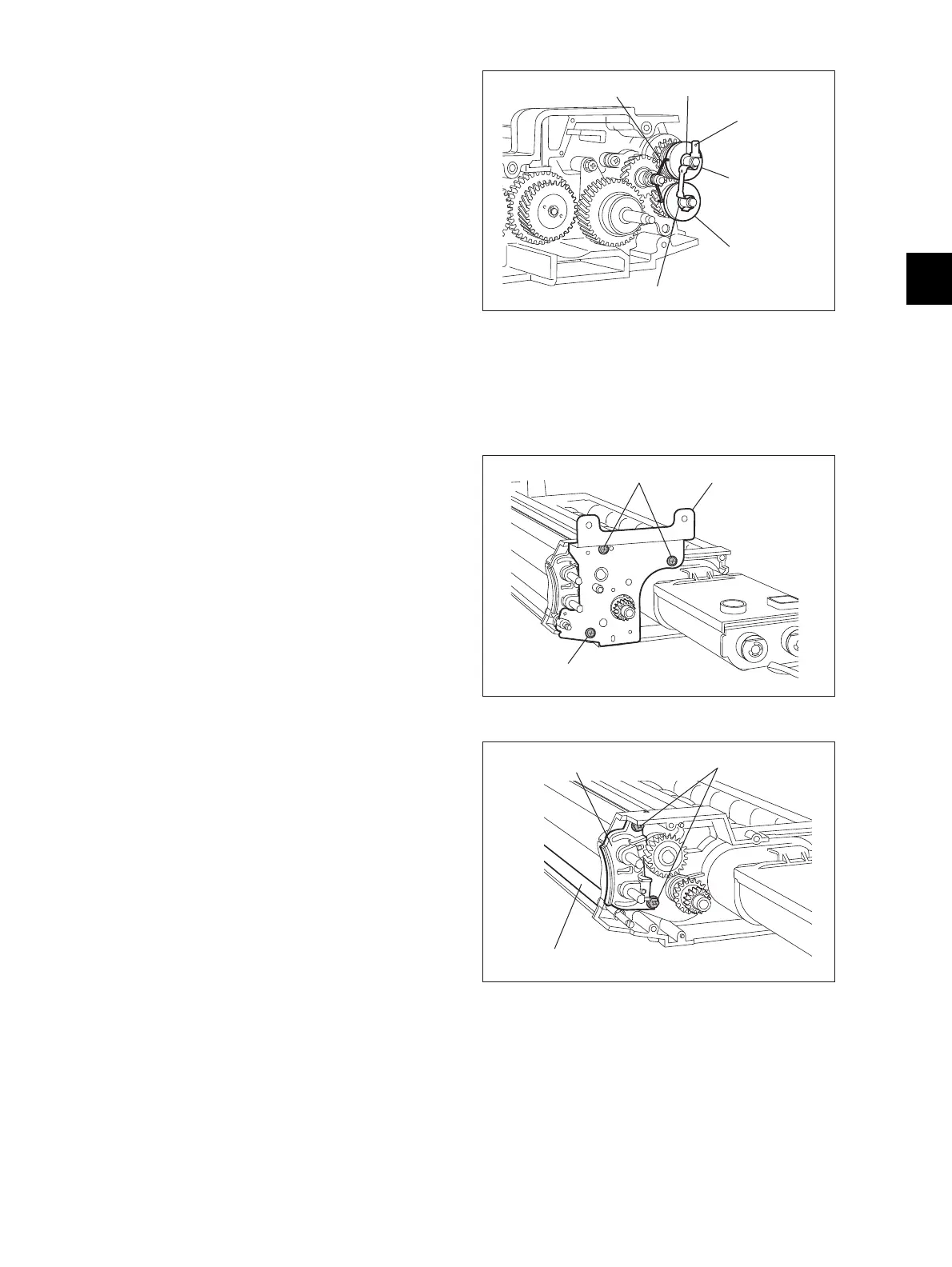

4.8.14 Scattered toner recovery roller / Developer sleeves (Magnetic
roller)
(5) Remove the bias plate and the spring.
(6) Remove 2 E-rings and take off 2 guide
rollers.
Make sure that the color of the guide roller is
correct when assembling. (upper side: white,
lower side: black)
Fig. 4-218
(1) Take off the guide roller.
( P.4-76 "4.8.12 Guide roller on the front
side",  P.4-76 "4.8.13 Guide roller on the
rear side")
(2) Remove 3 screws to take off the front side
plate.
Fig. 4-219
(3) Take off the toner recovery roller.
(4) Remove 2 screws of the developer sleeve
holder on the front side.
Fig. 4-220
Guide roller
(
Black
)
Guide roller
(
Whit
)
Spring
E-ring
E-ring
Bias plate
Front side plateScrew
Screw
Developer sleeve holder
Scattered toner recovery roller
Screw
To Next Page
