© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 155

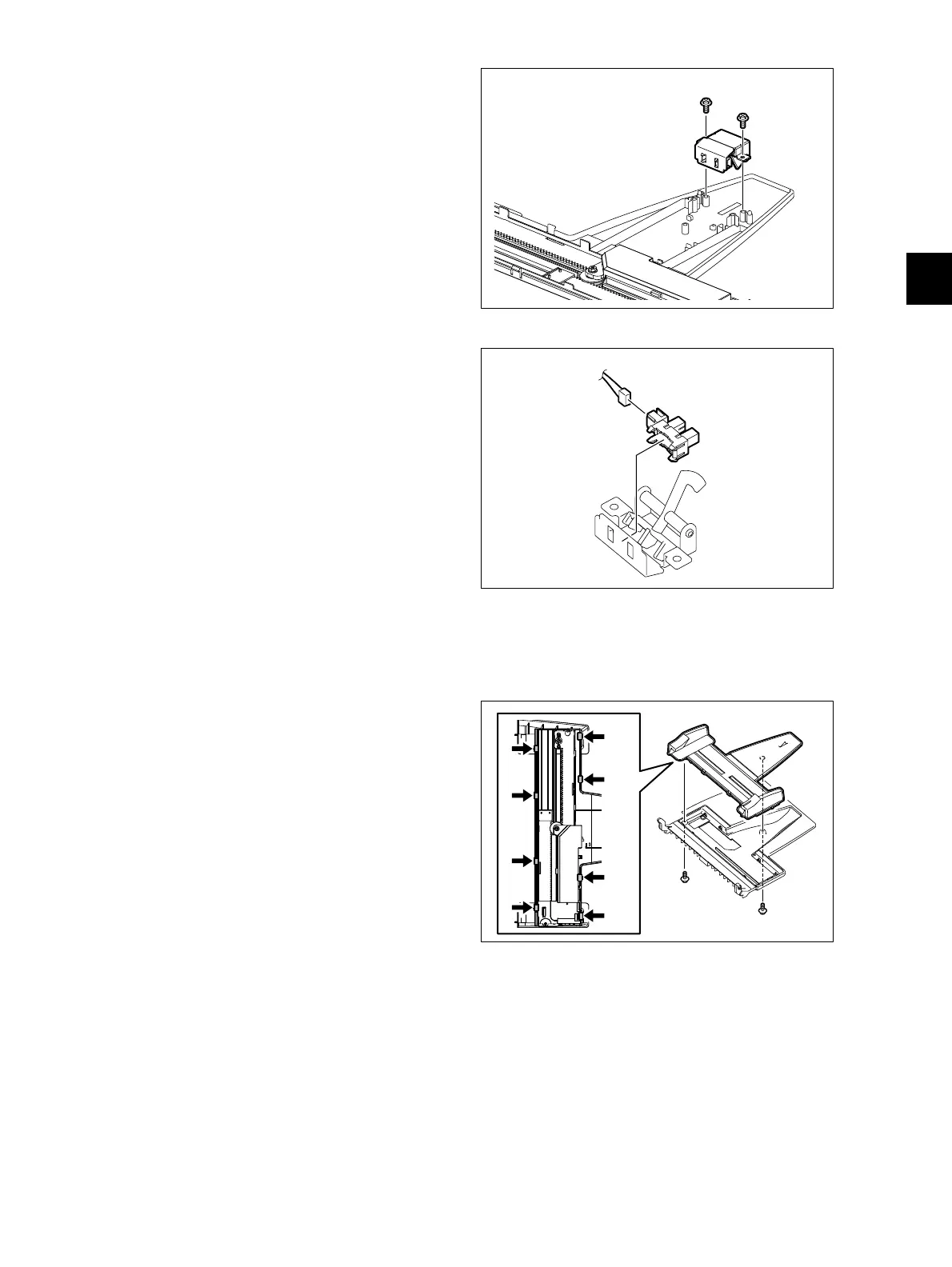

4.12.46 Original tray width sensor (SR2)
(3) Remove 2 screws and take off the sensor
bracket.
Fig. 4-441
(4) Disconnect 1 connector. Release 2 latches
and take off the original tray sensor.
Fig. 4-442
(1) Take off the original reverse tray.
( P.4-120 "4.12.7 Original reverse tray")
(2) Remove 2 screws and release 8 latches to
take off the original side guide unit.
Fig. 4-443
