DISASSEMBLY AND REPLACEMENT
4 - 157
4.12.48 Original reverse unit opening/closing sensor (SR14)
(3) Remove 2 screws. Disconnect 1 connector
and take off the sensor bracket.

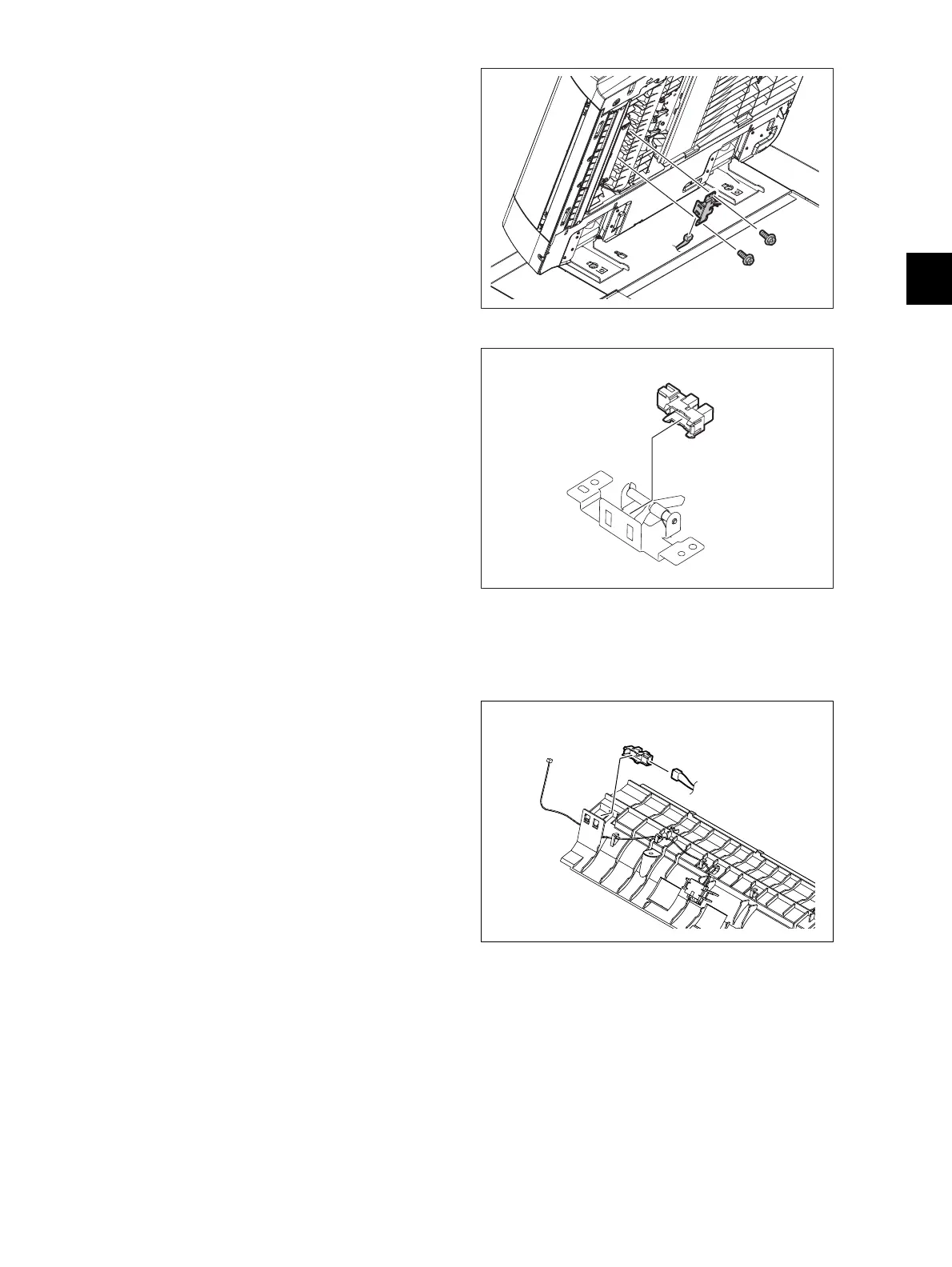

Fig. 4-447
(4) Release 2 latches and take off the original
exit/reverse sensor.
Fig. 4-448
(1) Take off the reading end guide.
( P.4-123 "4.12.11 Exit guide / Exit/reverse
guide / Reading end guide")
(2) Disconnect 1 connector. Release 2 latches
and take off the original reverse unit opening/
closing sensor.
Fig. 4-449
