DISASSEMBLY AND REPLACEMENT
4 - 26
4.3.15 Scanner unit cooling fan (M38)
(1) Take off the top rear cover.
( P.4-3 "4.1.6 Top rear cover")
(2) Take off the rear cover.
( P.4-5 "4.1.13 Rear cover")
(3) Take off the top left cover.
( P.4-2 "4.1.5 Top left cover")
(4) Remove 3 screws and take off the duct
cover.

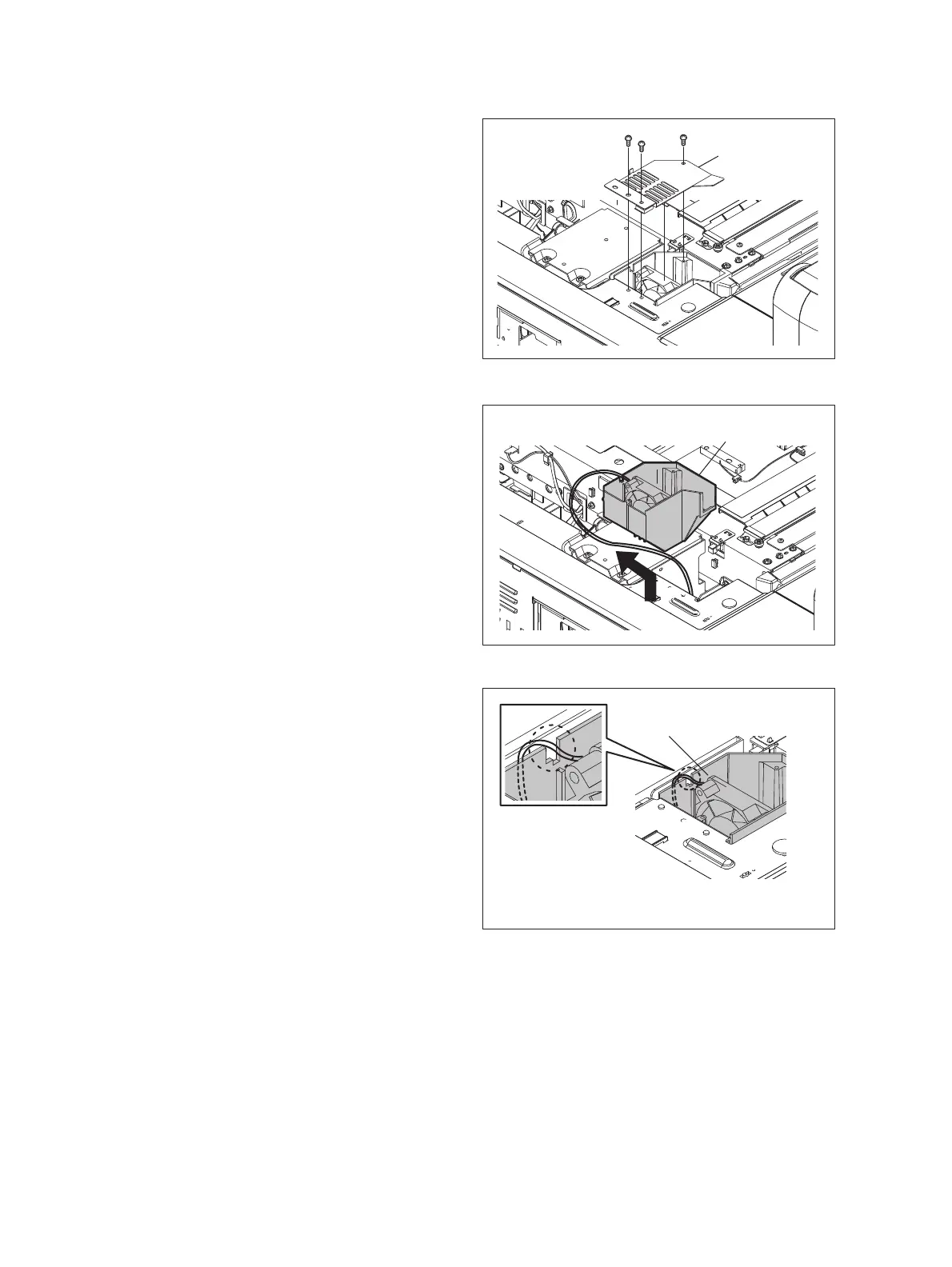

Fig. 4-71
(5) Lift the duct.
Fig. 4-72
Notes:
• Pass the cable through cutout of the duct
to install it in the equipment.
• When installing, do not let the harness be
caught.
Fig. 4-73
Duct cover
Duct
Duct
