e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 102
4.10.6 Lower separation finger unit / Lower separation finger
4.10.7 Fuser roller front/center/rear thermistor (THM1 / THM 2 / THM 3),
Fuser roller center/side thermostat (THMO1 / THMO2)
(5) Remove the spring to take off the upper
separation fingers.

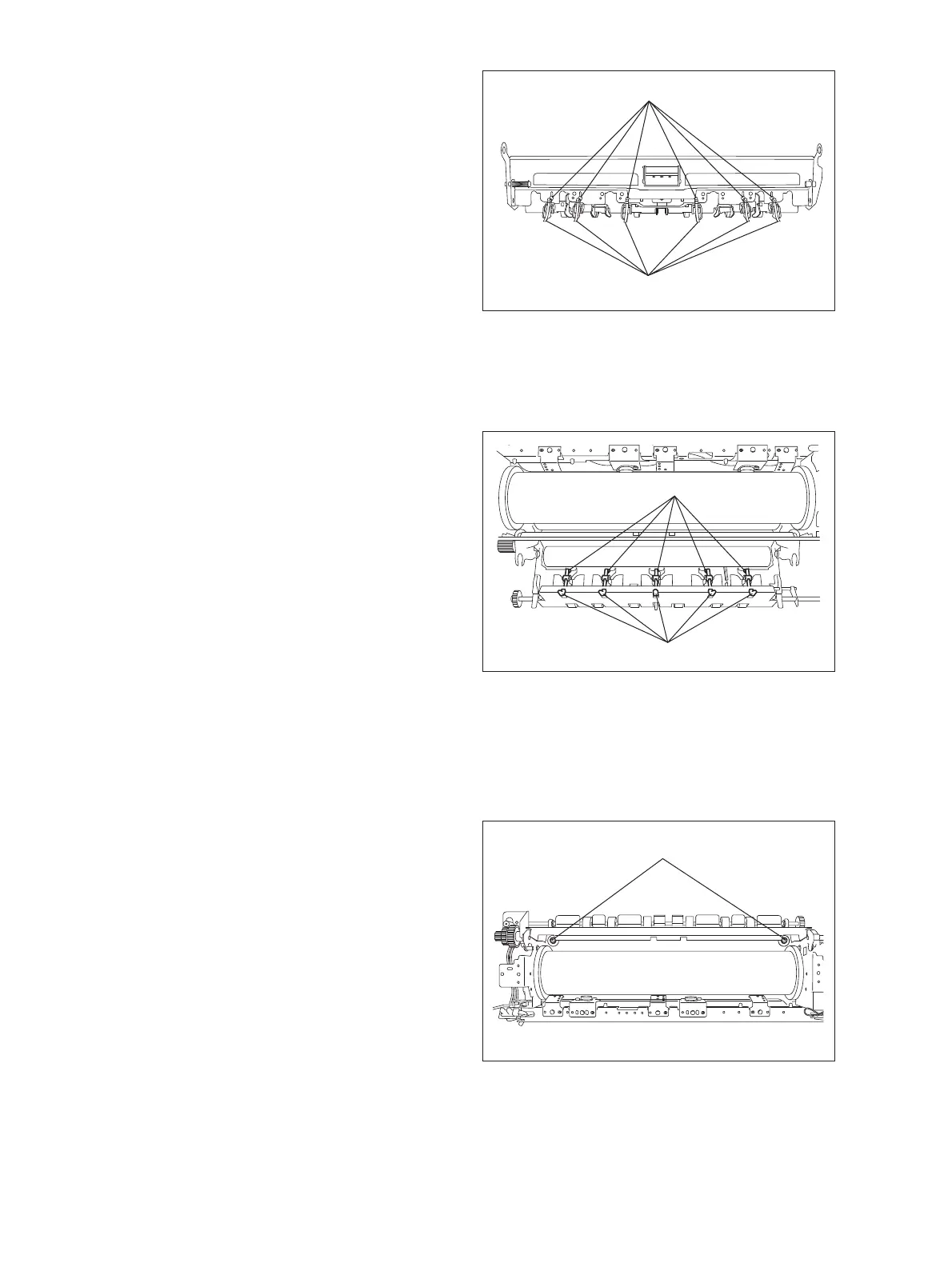

Fig. 4-284
(1) Take off the fuser unit.
( P.4-96 "4.10.2 Fuser unit")
(2) Remove 2 screws and open the lower
separation finger unit.
(3) Remove the spring to take off the lower
separation fingers.
Fig. 4-285
(1) Take off the fuser unit.
( P.4-96 "4.10.2 Fuser unit")
(2) Take off the cleaning web unit.
( P.4-97 "4.10.3 Cleaning web unit /
Cleaning web")
(3) Loosen 2 pressure screws completely.
Fig. 4-286
Spring
Upper separation finger
Lower separation finger
Spring
Pressure screw
To Next Page
