DISASSEMBLY AND REPLACEMENT
4 - 142

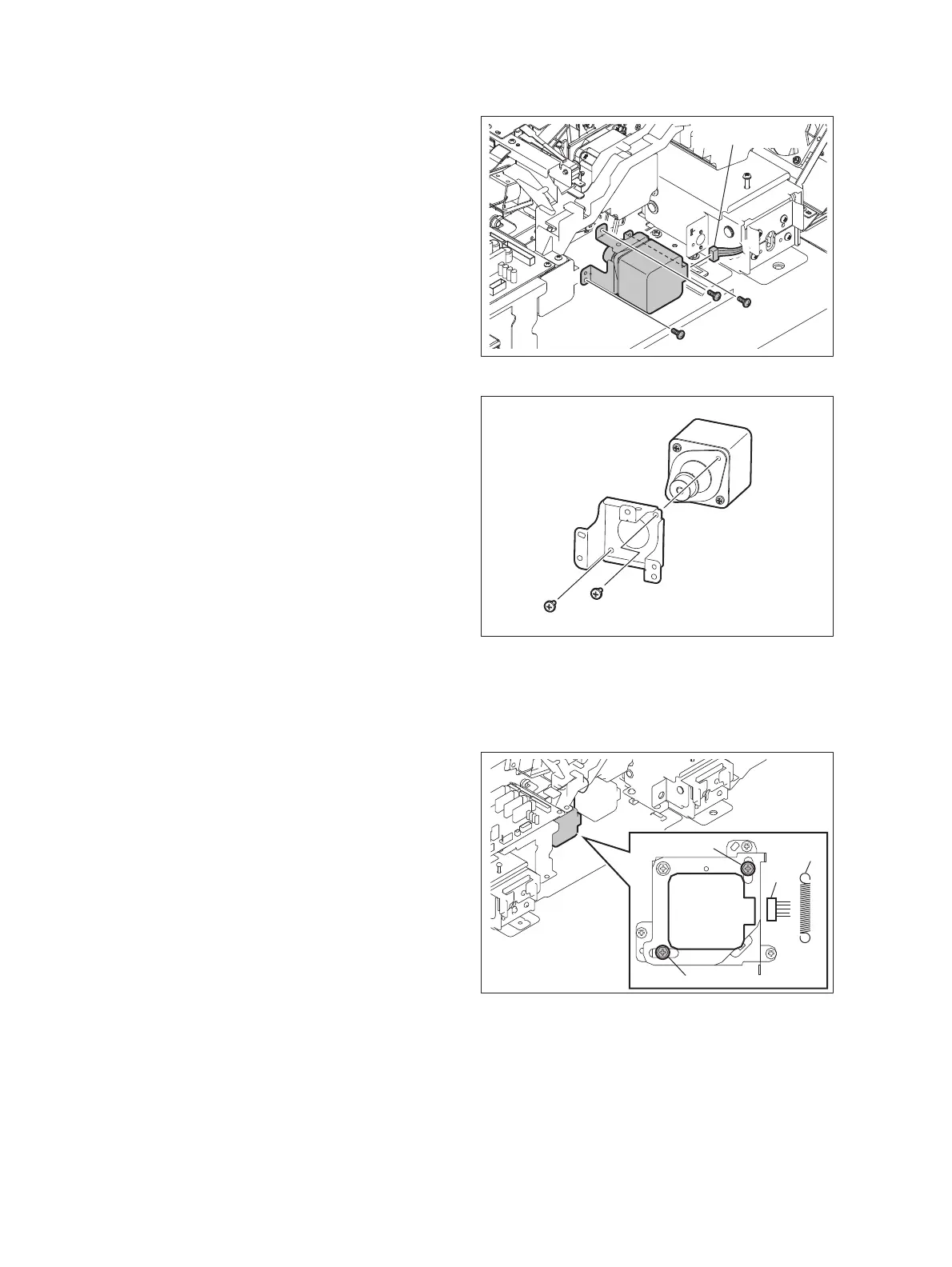

4.12.28 Original reverse motor (MR3)
4.12.29 Original exit motor (MR4)
(1) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(2) Disconnect 1 connector.
(3) Remove 3 screws and take off the original
reverse motor with the bracket.
Fig. 4-403
(4) Remove 2 screws and take off the bracket
from the original reverse motor.
Fig. 4-404
(1) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(2) Disconnect 1 connector [1].
(3) Remove 1 spring [2].
(4) Loosen 2 screws [3].
Fig. 4-405
Connector
[3]
[2]
[1]
[3]
