e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 80
4.8.16 Mixer
4.8.17 Paddle
(1) Take off the auto-toner sensor.
( P.4-75 "4.8.11 Auto-toner sensor (S12)")
(2) Remove 2 E-rings and then 2 gears on the
rear side.
(3) Remove 2 bearings and replace 2 oil seals
pressed into the frame, if necessary.
Apply grease (Alvania No. 2) all around the
mixer shaft before installing the bearings.
(4) Take off the cover.

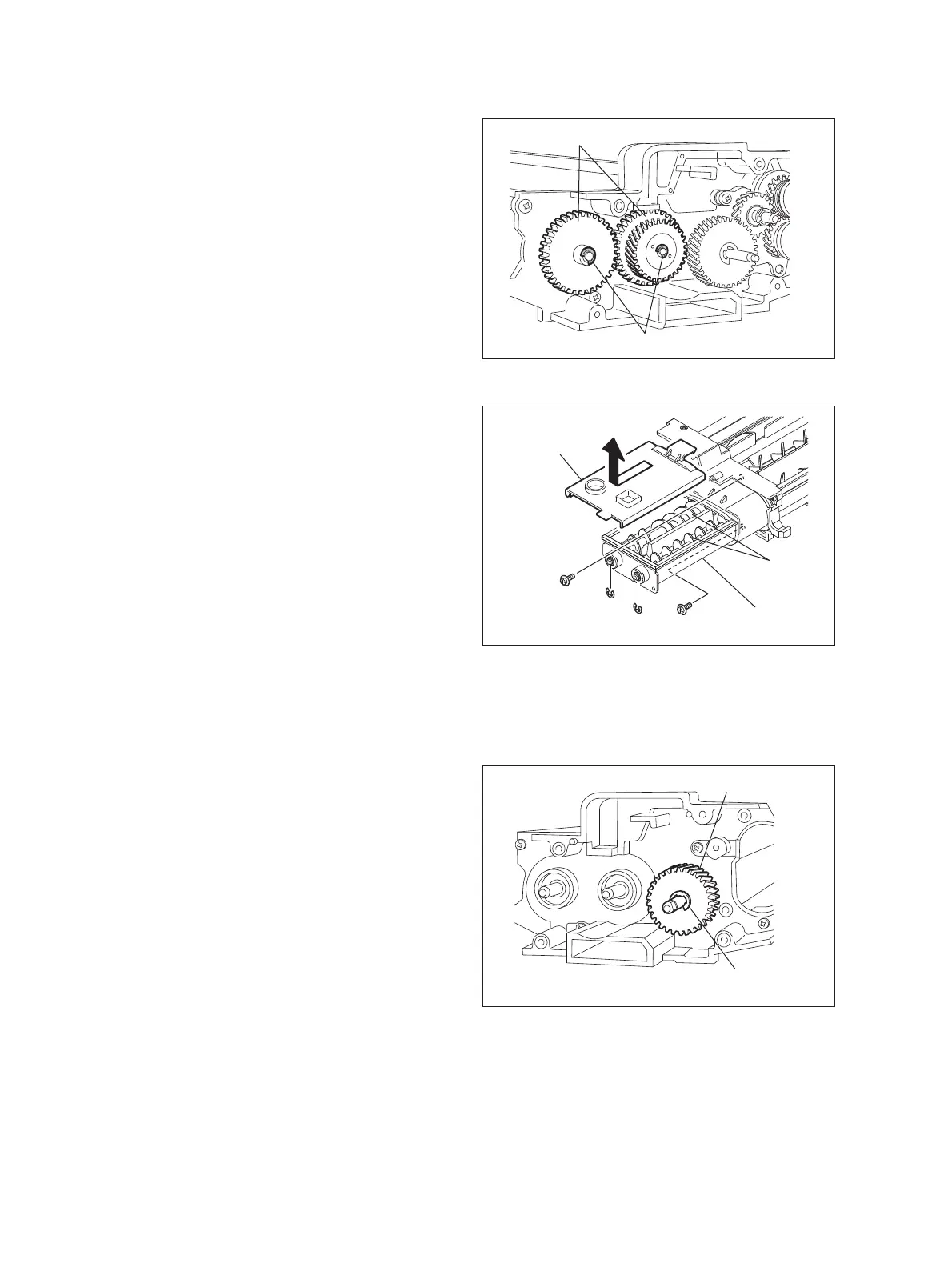

Fig. 4-227
(5) Remove 2 E-rings, 2 screws and then take
off the mixer nozzle on the front side.
(6) Pull out 2 mixers.
(7) Replace the oil seal pressed into the mixer
nozzle, if necessary.
* Procedure for replacing an oil seal:
( P.4-82 "4.8.18 Procedure for
replacing an oil seal")
Fig. 4-228
(1) Take off the mixer.
( P.4-80 "4.8.16 Mixer")
(2) Remove 1 E-ring, the gear and parallel pin
on the rear side.
Fig. 4-229
Gear
E-ring
Mixer nozzle
Cover
Mixer
Gear
E-ring
To Next Page
