Toshiba e-STUDIO556 User Manual

4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 109
4.11 Exit/Reverse Section
4.11.1 Exit/Reverse unit
4.11.2 Reverse section cooling fan-1 [M24] / Reverse section cooling
fan-2 [M25]
(1) Take off the left lower cover (= exit cover).
( P.4-4 "4.1.11 Left lower cover (Exit
cover)")
(2) Open the exit/reverse unit and remove 1
screw.

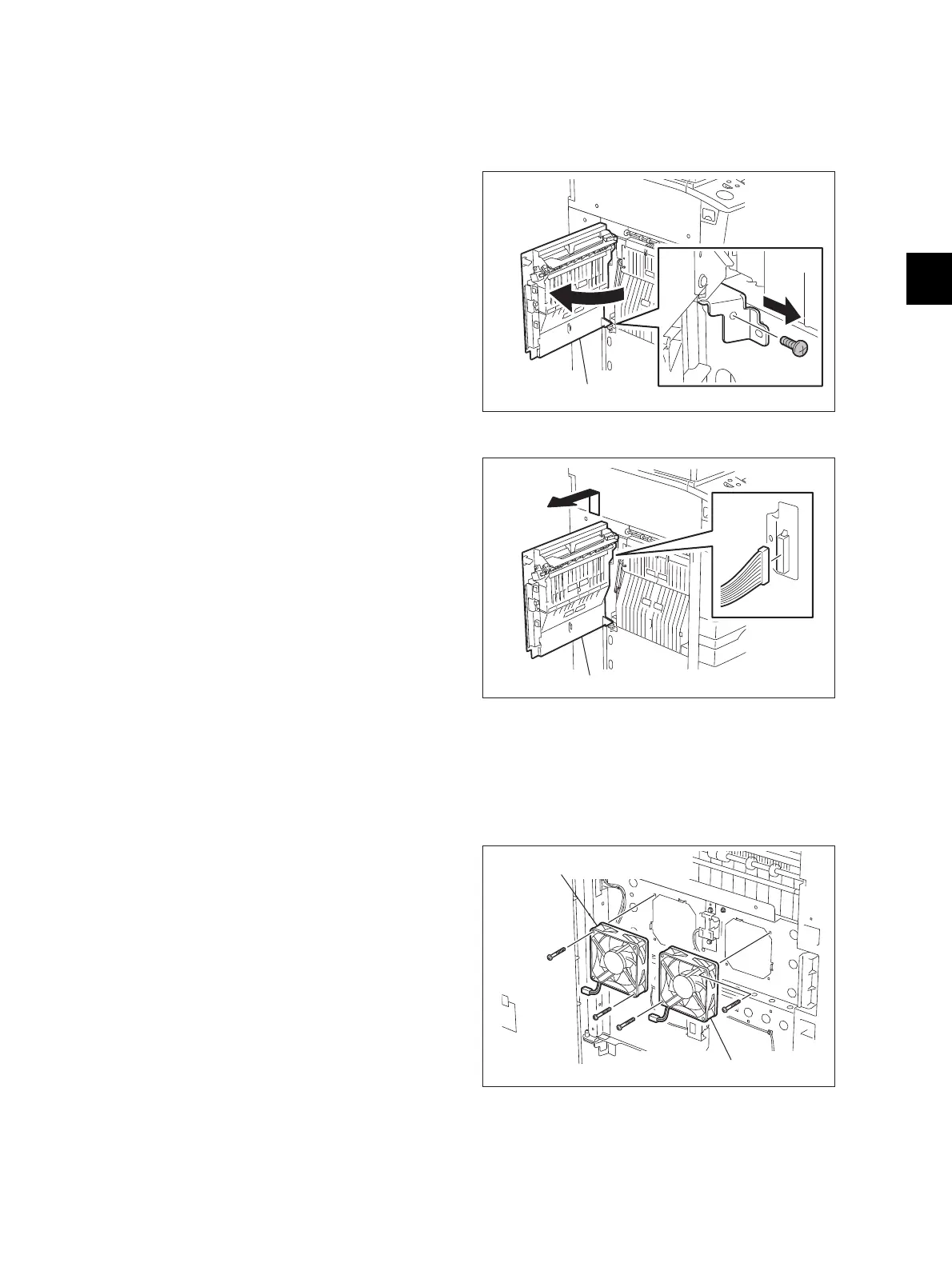

Fig. 4-304
(3) Disconnect 1 connector. Then take off the
exit/reverse unit by lifting it up.
Fig. 4-305
(1) Take off the left lower cover (= exit cover).
( P.4-4 "4.1.11 Left lower cover (Exit
cover)")
(2) Disconnect 1 connector, remove 2 screws
and then take off the reverse section cooling
fan-1.
(3) Disconnect 1 connector, remove 2 screws
and then take off the reverse section cooling
fan-2.
Fig. 4-306
Exit/Reverse unit
Exit/Reverse unit
Reverse section cooling fan-2
Reverse section cooling fan-1
