ADJUSTMENT

6 - 71

6.14.2 RADF height adjustment

Note:

Check if the image adjustment for the equipment is performed properly before this adjustment of

the RADF.

[A] Adjustment

(1) Close the RADF.

(2) Light the exposure lamp.

• Turn the power ON while pressing [0] and

[3] simultaneously.

• Key in [267] and then press the [START]

button. The exposure lamp is turned ON

for a given length of time.

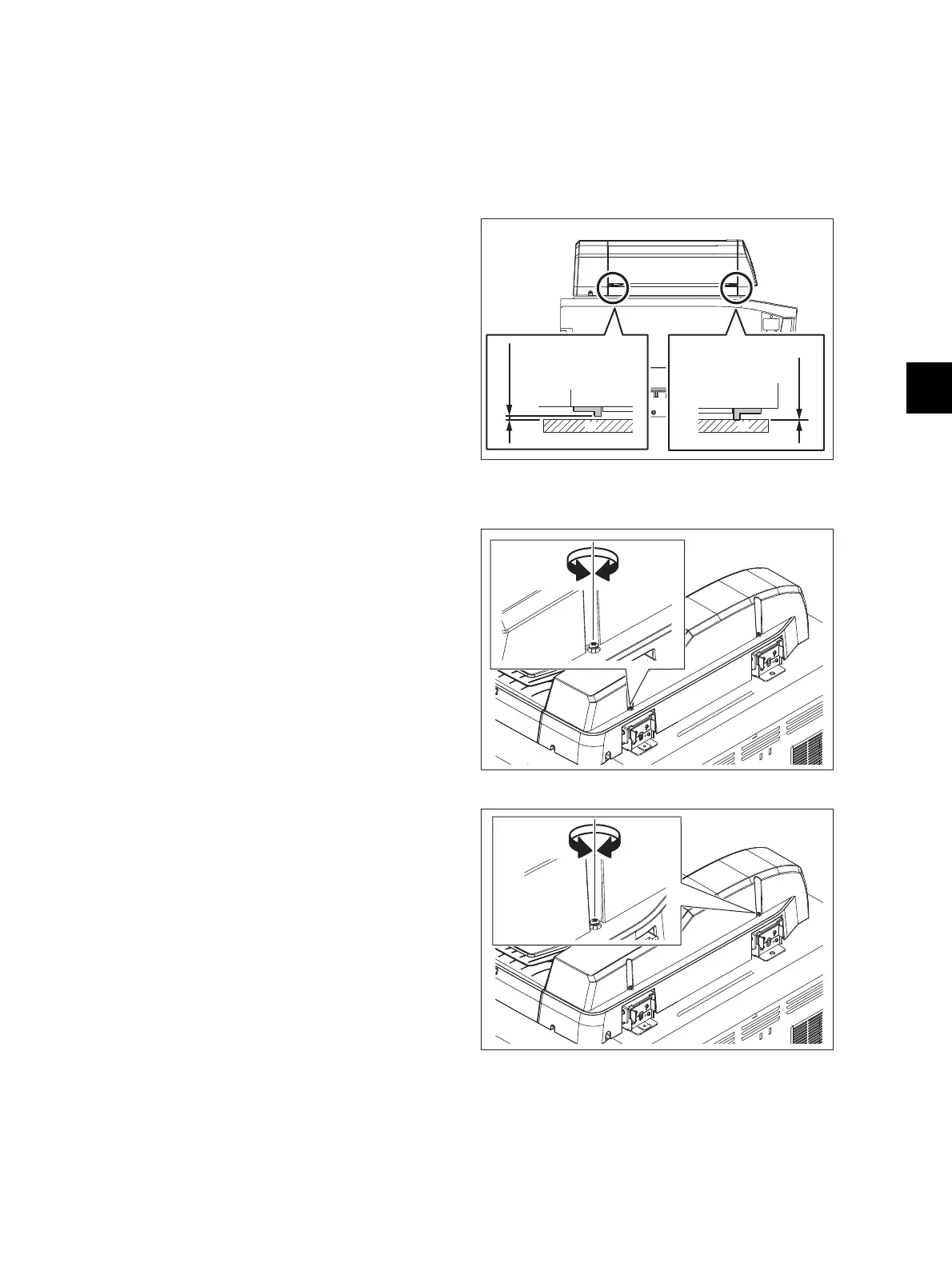

(3) Visually check the gap between platen guide

holder “A” and upper surface of the original

glass “B” from the left hand side of the

equipment. If the value is not within the

tolerance, perform the adjustment according

to the following procedure.

[Tolerance of the gap]

Rear side: 0 - 0.2 mm

Front side: 0 mm

Fig. 6-73

(4) Close the RADF. Adjust it by turning the

adjustment screws on the hinges.

• Adjust the gap on the rear side by means

of the screw on the hinge on the feed side

(right side) of the RADF.

Turn it clockwise ................ Heightened

Turn it counterclockwise .... Lowered

Fig. 6-74

• Adjust the gap on the front side by means

of the screw on the hinge on the exit side

(left side) of the RADF.

Turn it clockwise ................ Lowered

Turn it counterclockwise .... Heightened

Fig. 6-75

0~0.2mm

0mm
