DISASSEMBLY AND REPLACEMENT
4 - 139
4.12.24 Original feed motor (MR1)
4.12.25 Original feed motor bracket
(1) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")

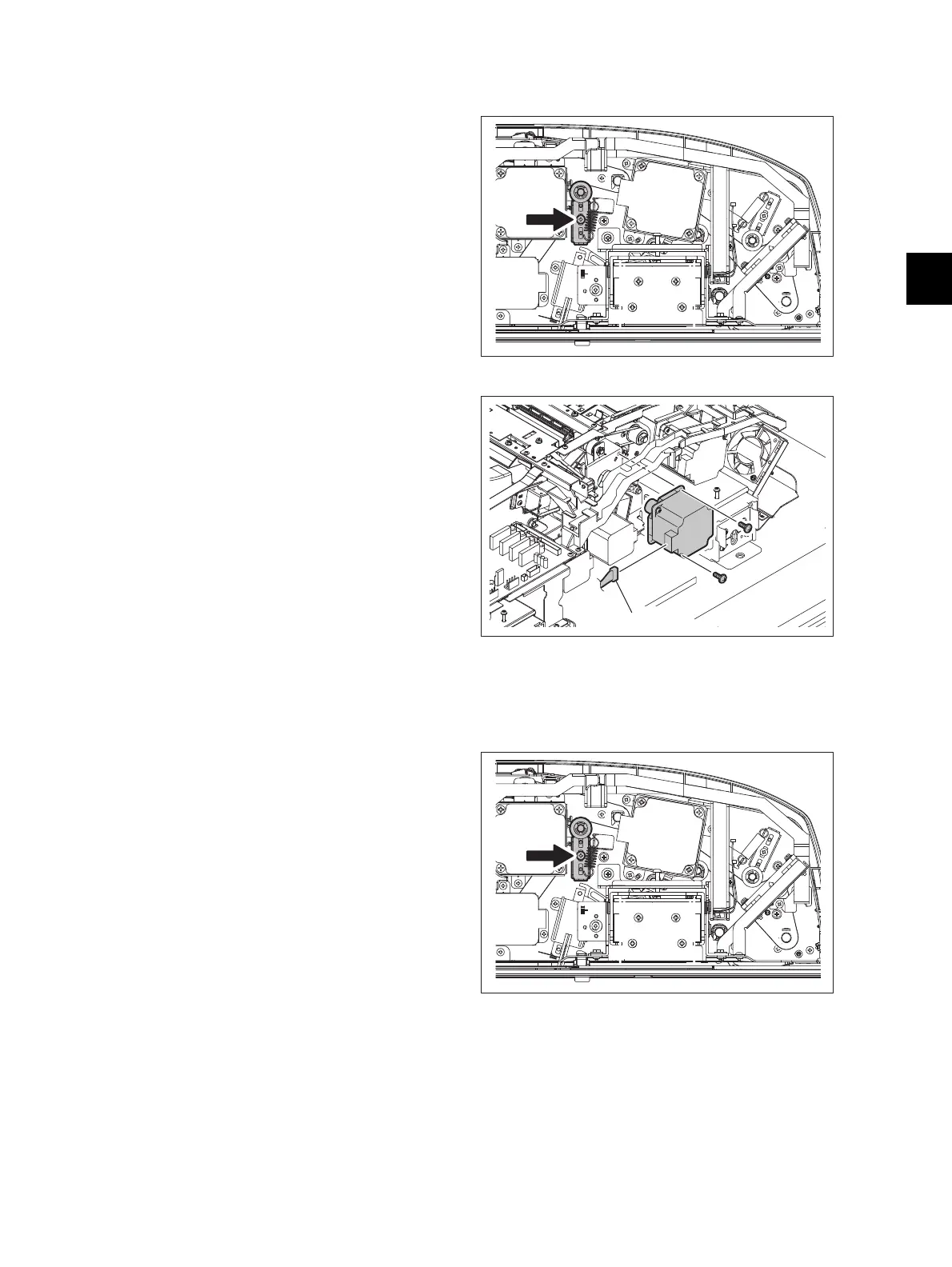

(2) Loosen 1 screw.
Fig. 4-394
(3) Disconnect 1 connector, remove 2 screws
and take off the original feed motor.
Fig. 4-395
(1) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(2) Loosen 1 screw.
Fig. 4-396
Connector
