DISASSEMBLY AND REPLACEMENT
4 - 125
4.12.12 Paper feeder unit

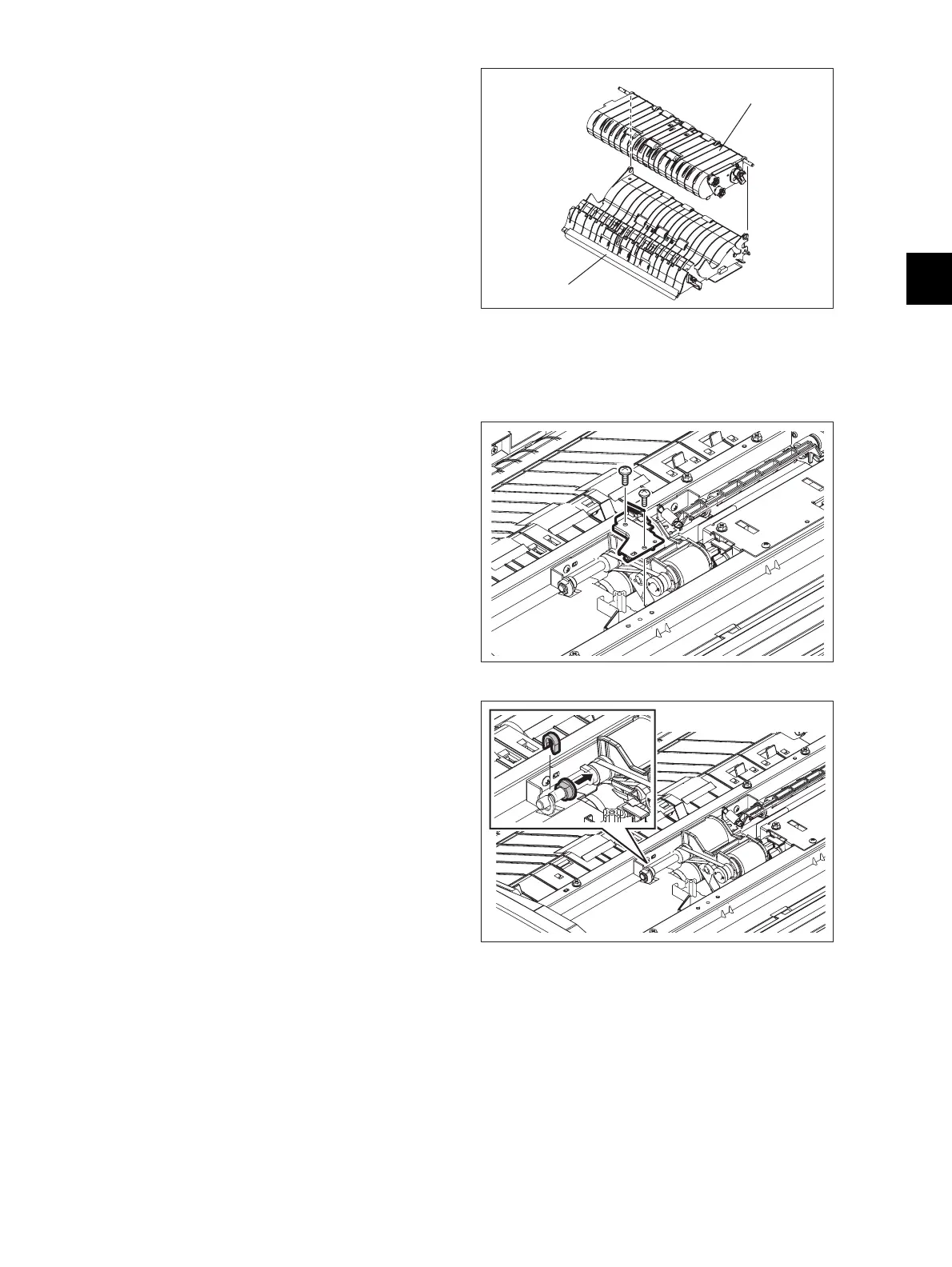

(12) Separate the reverse guide and the exit/
reverse guide.
Fig. 4-353
(1) Open the original jam access cover. Then
remove 2 screws and take off the arm unit on
the front side.
Fig. 4-354
(2) Remove 1 clip and slide the bushing.
Fig. 4-355
Exit guide
Exit/reverse guide
