© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 141

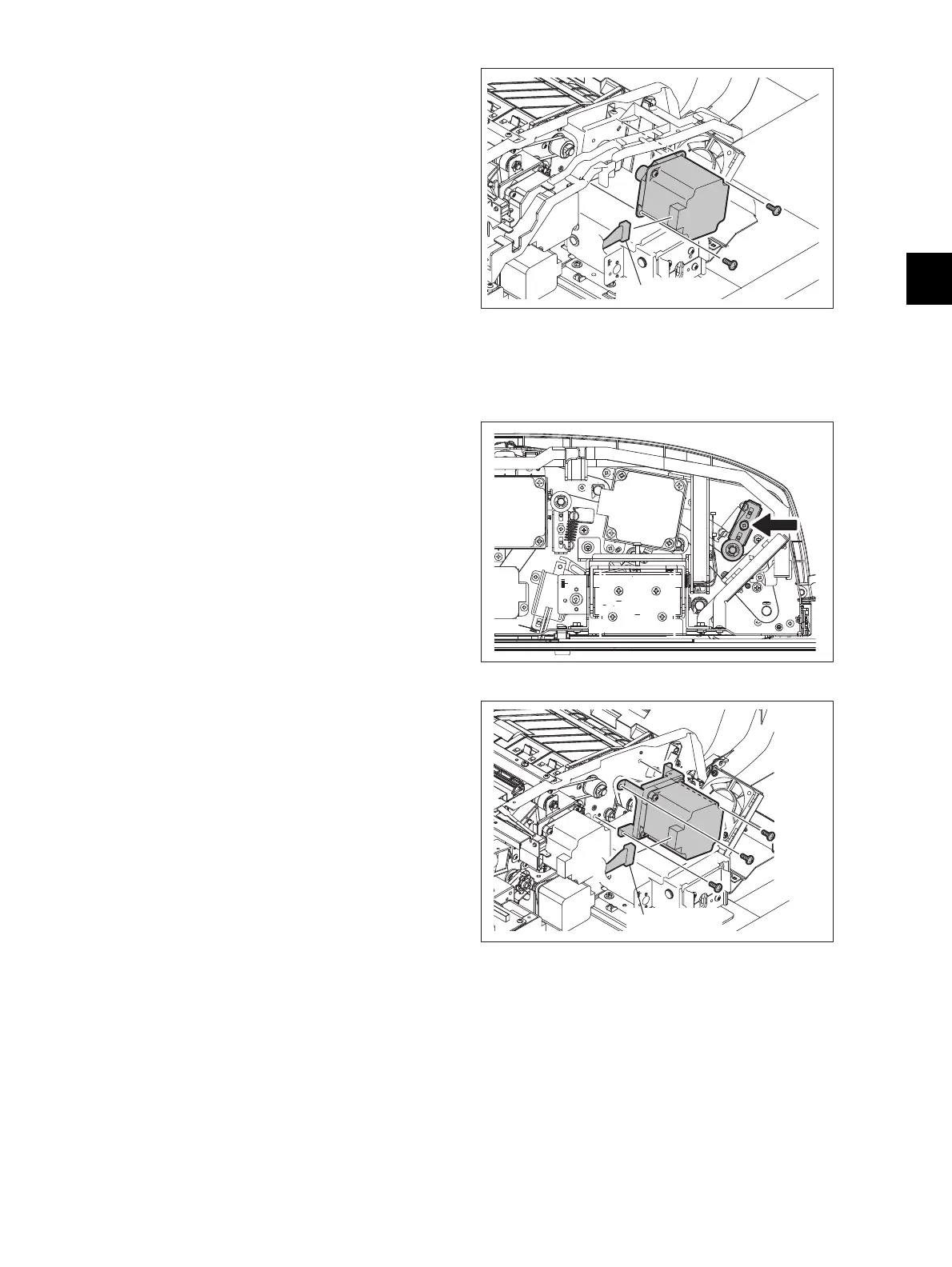

4.12.27 Read motor bracket
(3) Disconnect 1 connector.
(4) Remove 3 screws and take off the read
motor.
Fig. 4-400
(1) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(2) Loosen 1 screw.
Fig. 4-401
(3) Disconnect 1 connector.
(4) Remove 3 screws and take off the read
motor bracket with the motor.
Note:
When installing the read motor bracket, refix
the loosened screw and tighten the belt
tension.
Fig. 4-402
Connector
Connector
