© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 133

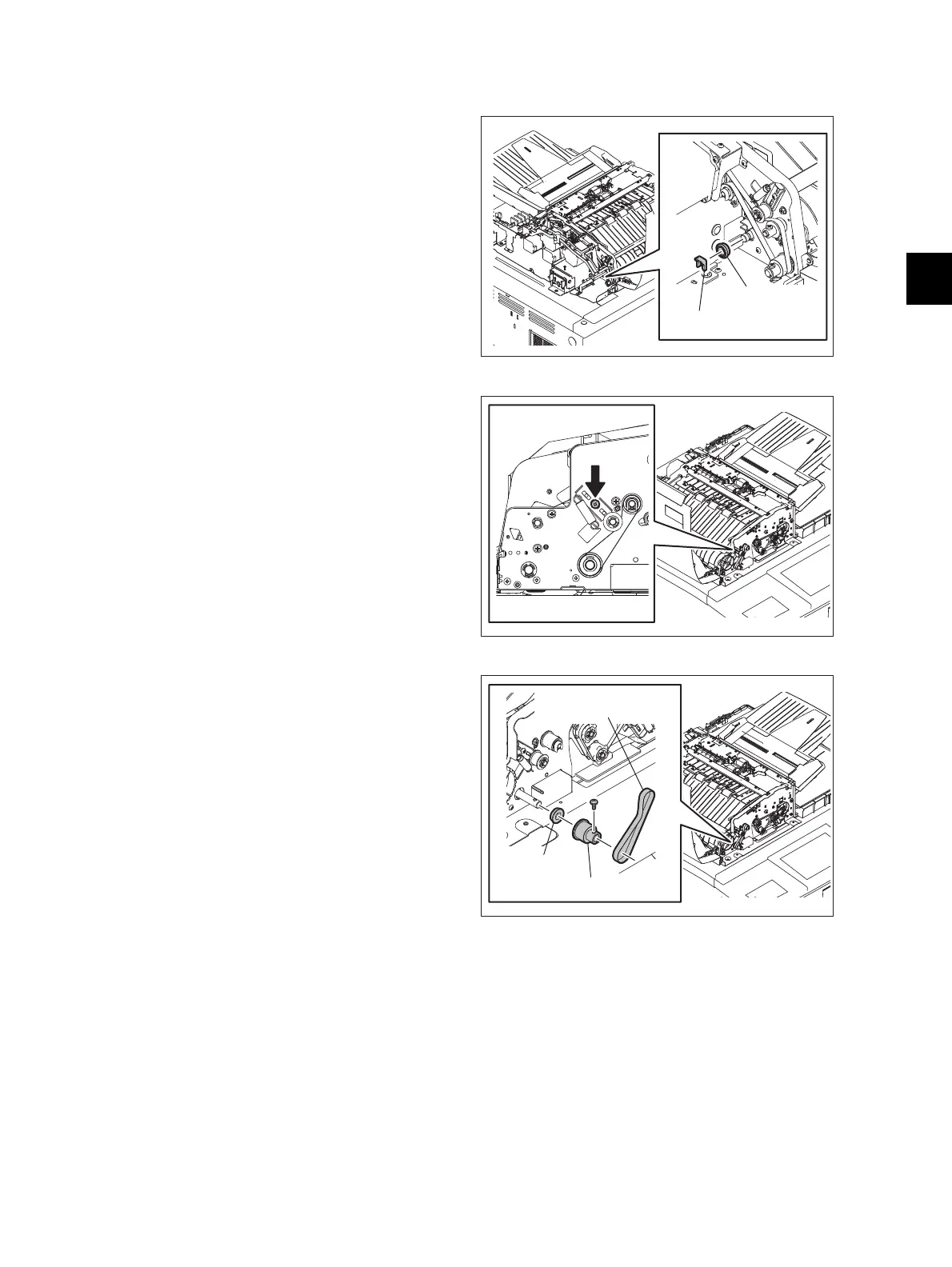

4.12.19 Reading end roller
(1) Take off the RADF front cover.
( P.4-116 "4.12.2 RADF front cover")
(2) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(3) Remove 1 clip and 1 bushing.
Fig. 4-377
(4) Loosen 1 screw.
Fig. 4-378
(5) Remove 1 screw, 1 pulley, 1 bearing and 1
timing belt.
Fig. 4-379
Clip
Bushing
Bearing
Pulley
Timing belt
