Toshiba e-STUDIO556 User Manual

4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 121
4.12.9 RADF exit tray
(1) Take off the RADF front cover.
( P.4-116 "4.12.2 RADF front cover")
(2) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(3) Take off the platen sheet unit.
( P.4-120 "4.12.8 Platen sheet unit")

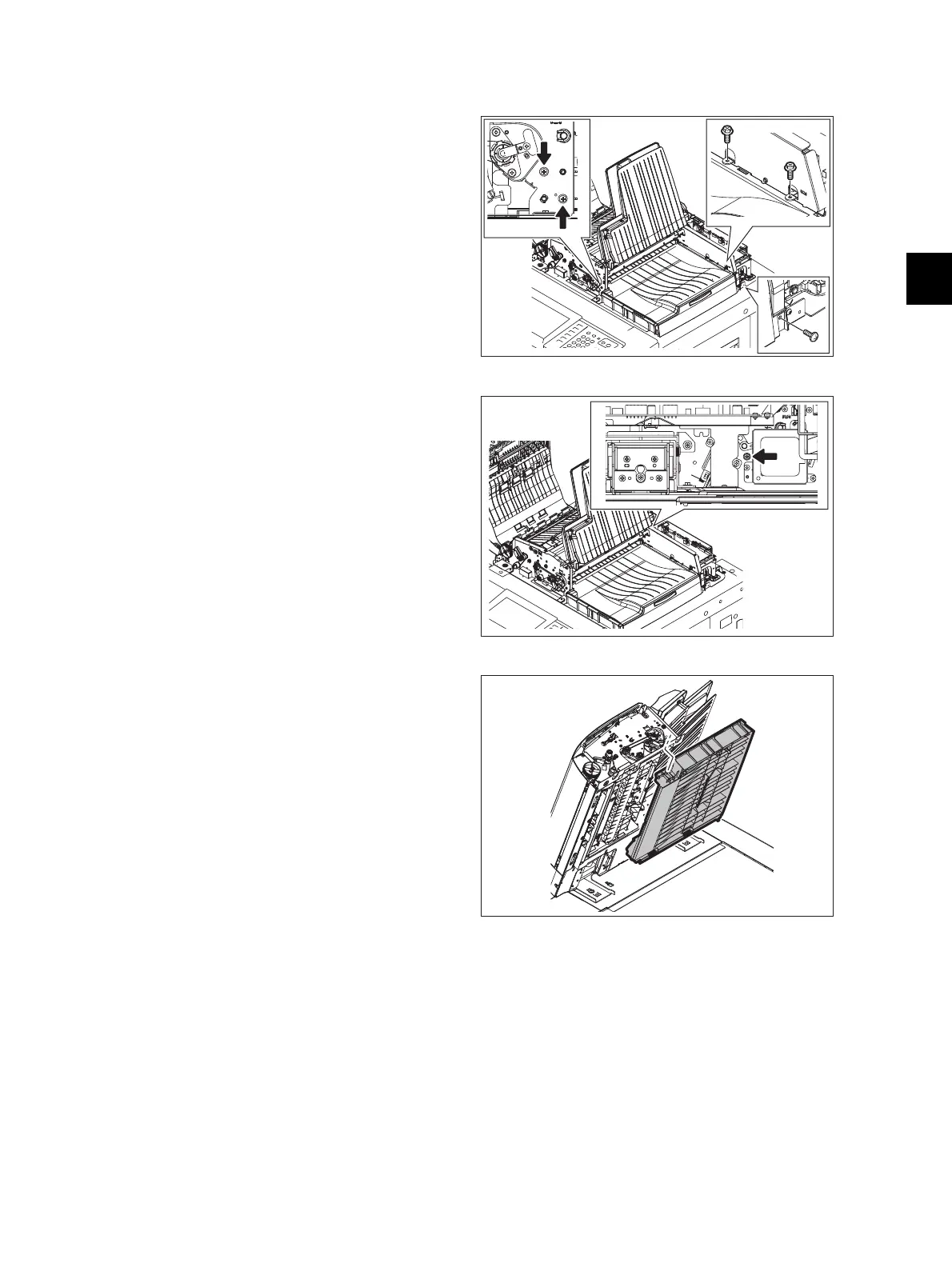

(4) Remove 5 screws.
Fig. 4-340
(5) Remove 1 screw.
Fig. 4-341
(6) Take off the RADF exit tray.
Fig. 4-342
