© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 27

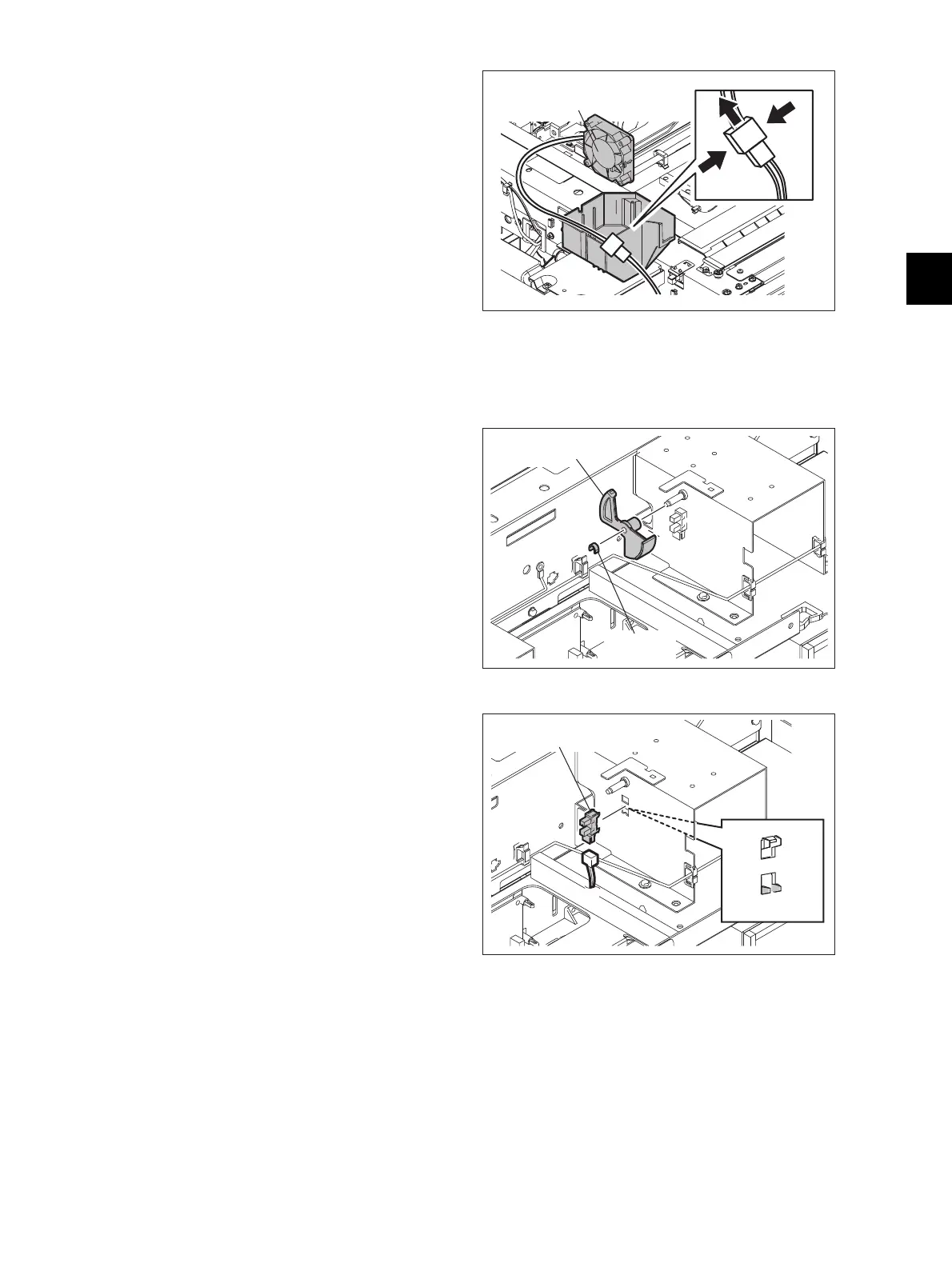

4.3.16 Platen sensor (S53)
(6) Disconnect 1 connector and take off the
scanner unit cooling fan.
Fig. 4-74
(1) Take off the top rear cover.
( P.4-3 "4.1.6 Top rear cover")
(2) Take off the rear cover.
( P.4-5 "4.1.13 Rear cover")
(3) Remove 1 clip to take off the actuator.
Fig. 4-75
(4) Disconnect 1 connector and release 2
latches. Then take off the platen sensor.
Fig. 4-76
Scanner unit
cooling fan
Actuator
Clip
Platen sensor
