Pick-up, Paper Feed and Separation Rollers
SM 7 D351
Paper Feed
Unit PB3040
D351

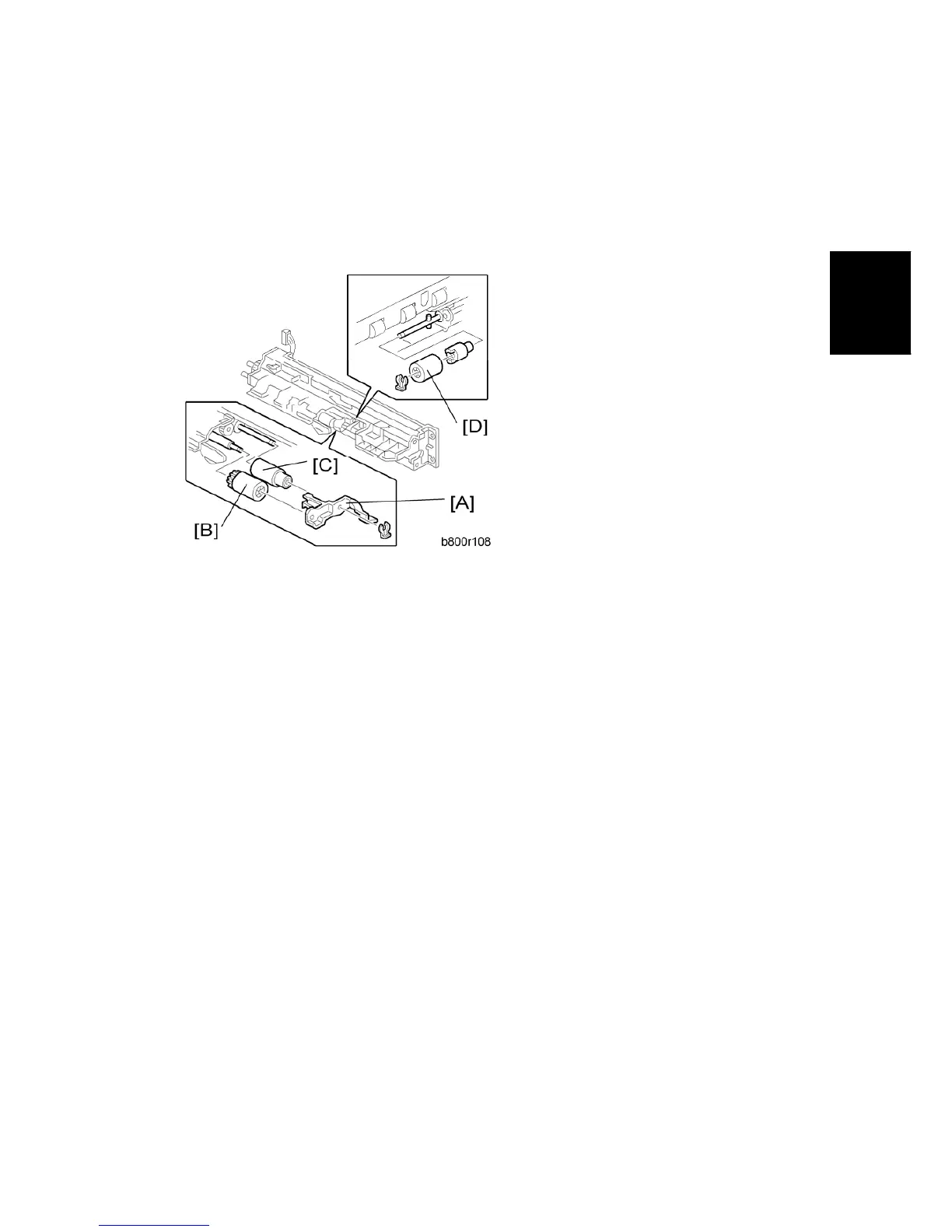

1.6 PICK-UP, PAPER FEED AND SEPARATION
ROLLERS
1. Paper feed unit ( "Paper Feed Unit)
2. Roller holder [A] ( x 1)
3. Pick-up roller [B]
4. Paper feed roller [C]
5. Separation roller [D] ( x 1)
