Development
SM 4-45 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment
4.8.4 TD SENSOR
1. PCDU ( p.4-32)
2. Empty all developer from the development unit. (
p.4-43)
3. Seal

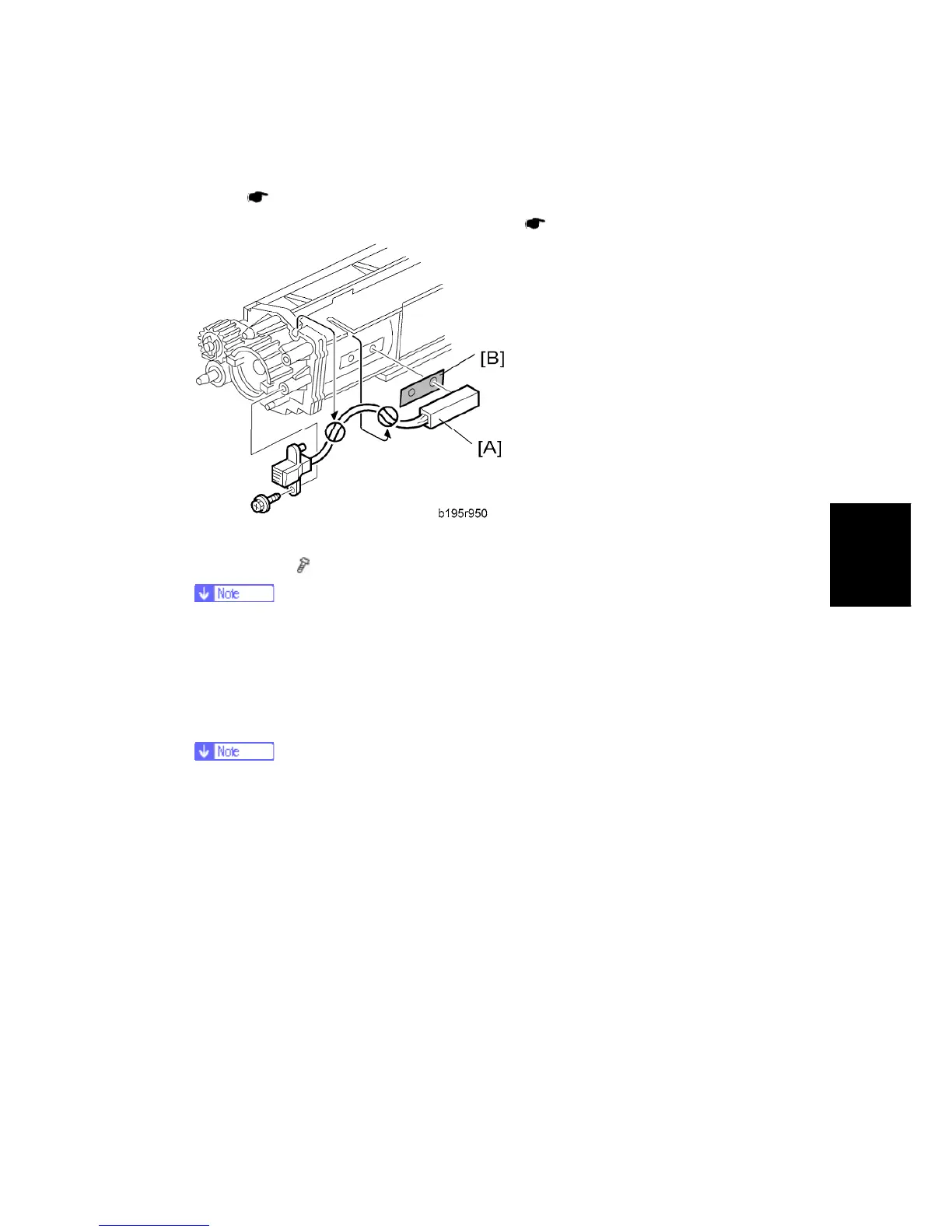

4. TD sensor [A] (
x1)
 The TD sensor is attached to the casing with double-sided tape [B]. Pry it off
with the flat head of a screwdriver. Use fresh double-sided tape to re-attach
the sensor.
5. Pour new developer into the development unit and perform the TD sensor initial setting
using SP2-801.
 When performing the TD sensor initial setting, cover the toner entrance hole
with a piece of paper.
