Corner Stapling
B804/B805 52 SM
2.5.3 CORNER STAPLING

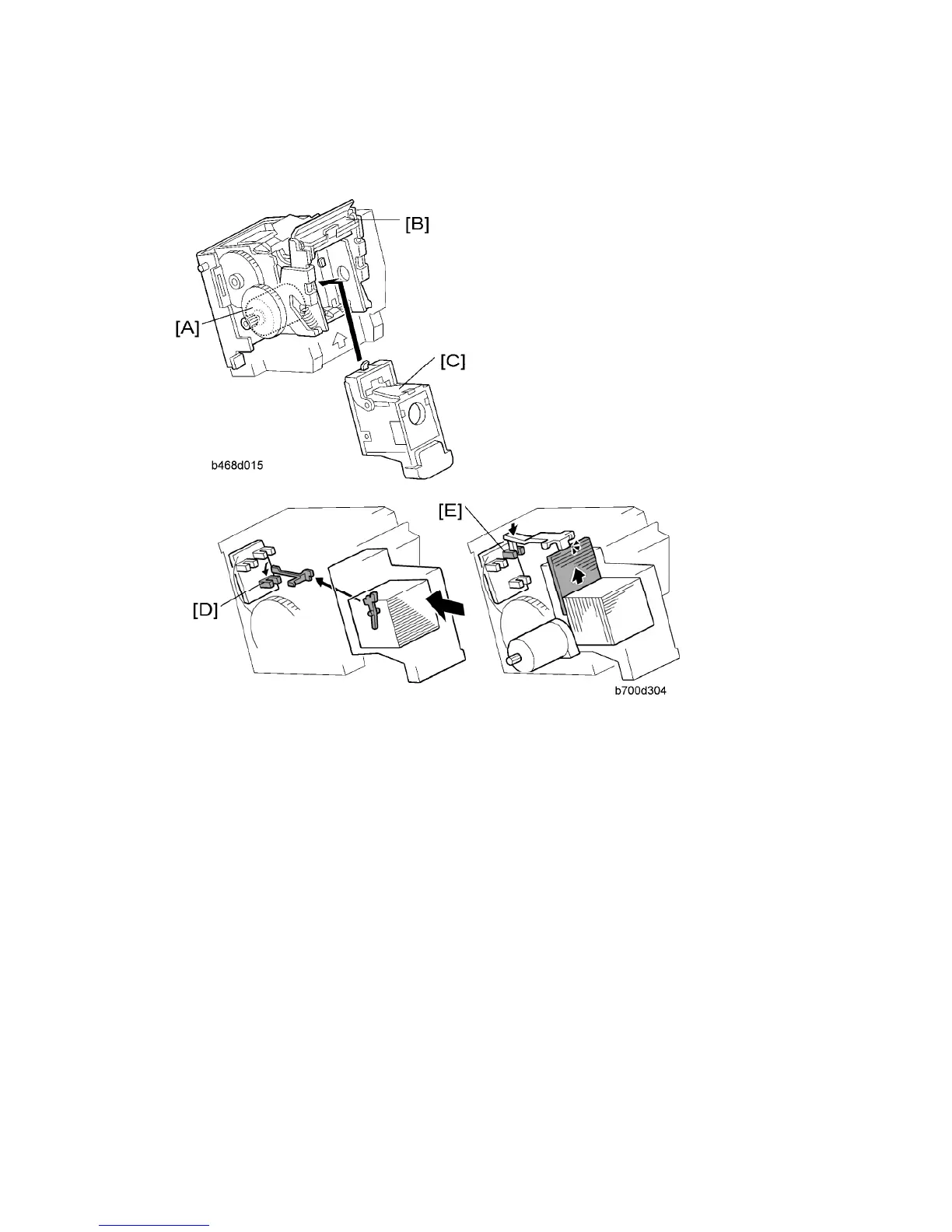

Staple firing is driven by the stapler motor [A] inside the stapler unit. The stapler hammer [B]
fires the stapler [C].
The cartridge set sensor [D] detects the cartridge at the correct position.
The staple end sensor [E] detects the staple end condition.
