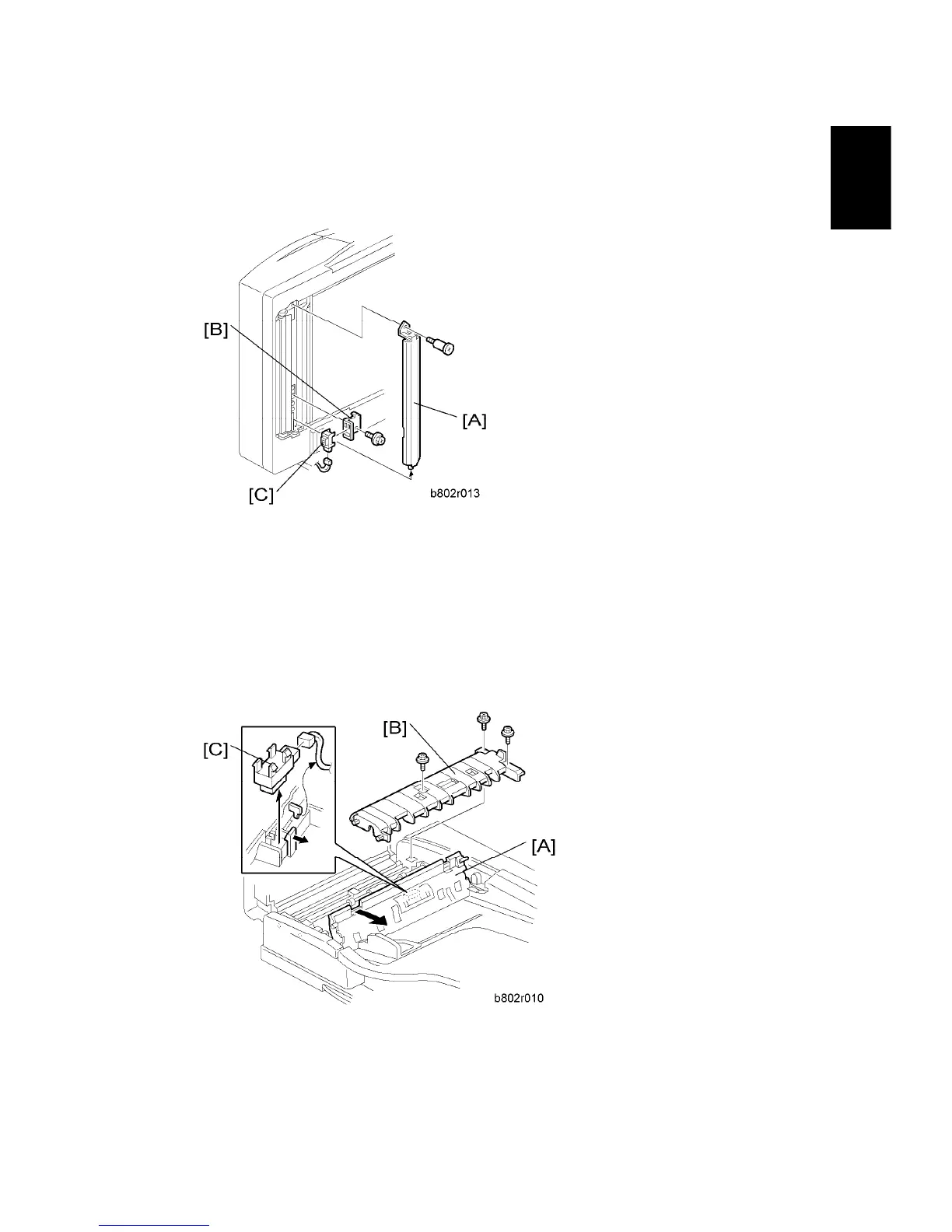

1.3.5 REGISTRATION SENSOR
1. Open the ARDF.
2. White plate [A] (stud screw x 1)
3. Registration sensor bracket [B] (

x 1)
4. Registration sensor [C] (

x 1)
1.3.6 ORIGINAL EXIT SENSOR
1. Open the left cover.
2. Open the feed-in guide plate [A].
3. Guide plate [B] (

x 2, stepped screw x 1; front side)
4. Original exit sensor [C] (

x 1, hook)
