Drive Area
D009/D011/D012/D013/D091/D092 4-82 SM
4.15 DRIVE AREA

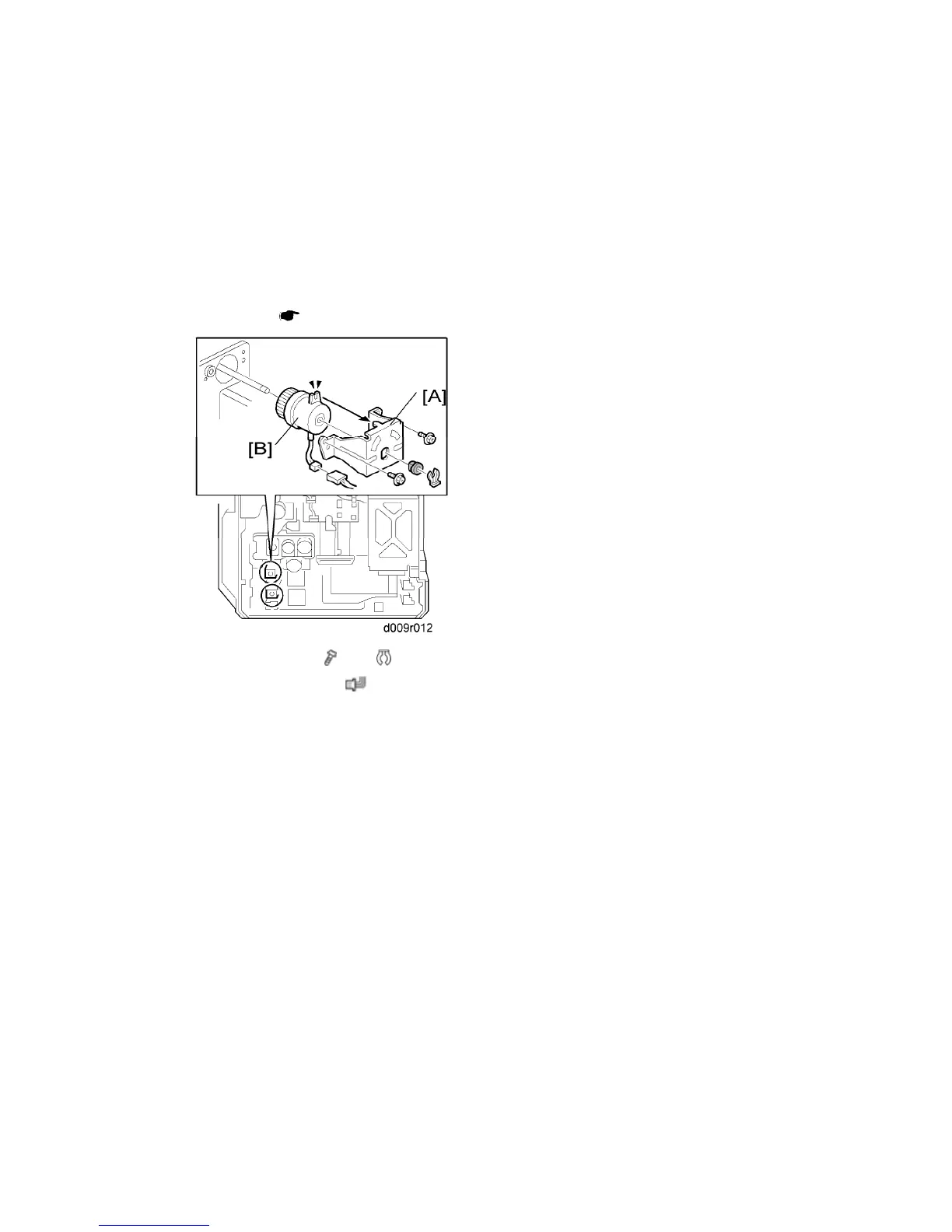

4.15.1 PAPER FEED CLUTCH
Tray 1 and Tray 2
1. Rear cover ( p.4-4)
2. Clutch bracket [A] (
x 2, x 1, bushing x 1)
3. Paper feed clutch [B] (
x 1)
