Drive Area
D009/D011/D012/D013/D091/D092 4-84 SM

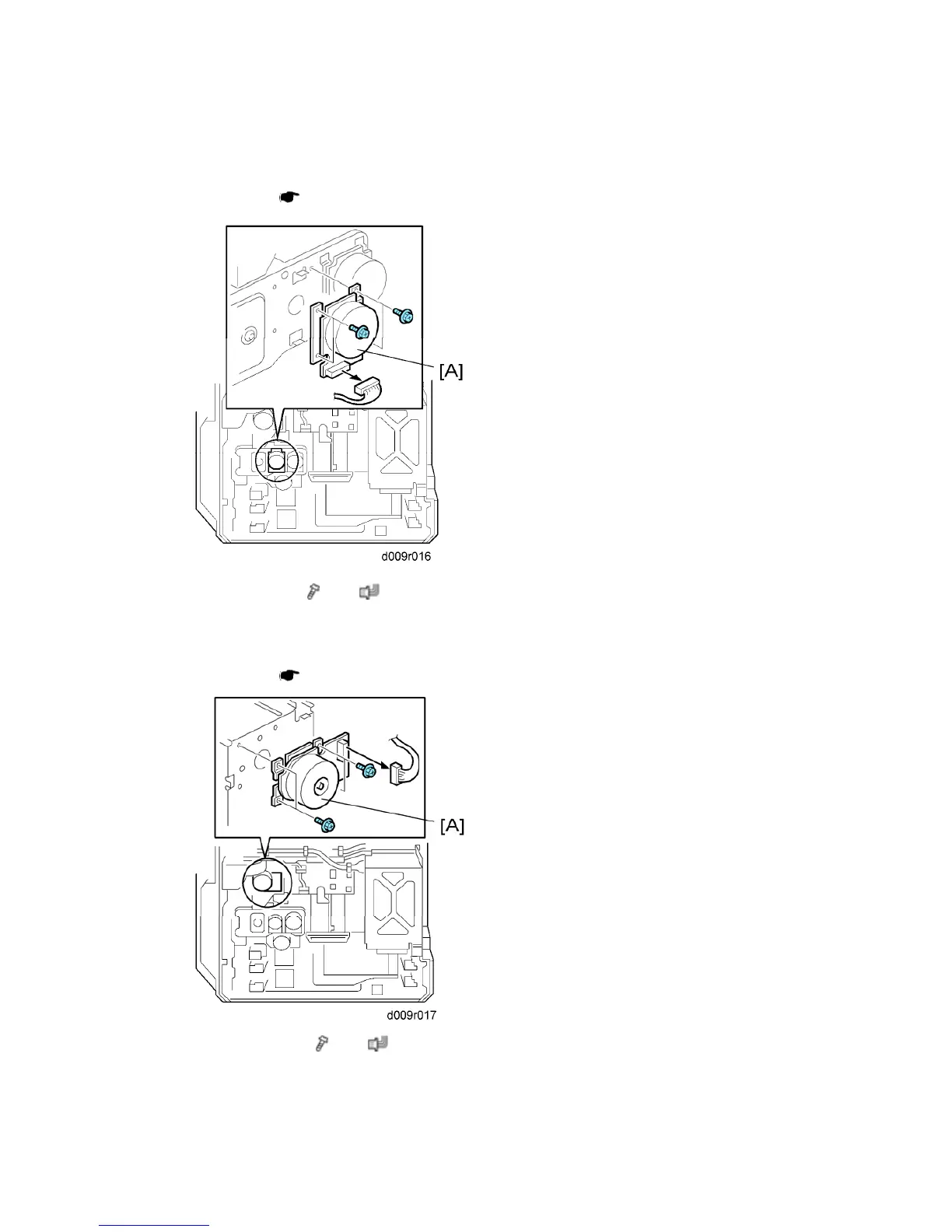

4.15.4 DRUM MOTOR
1. Rear cover ( p.4-4)
2. Drum motor [A] (
x 4, x 1)
4.15.5 FUSING MOTOR
1. Rear cover ( p.4-4)
2. Fusing motor [A] (
x 4, x 1)
