SM 4-49 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment

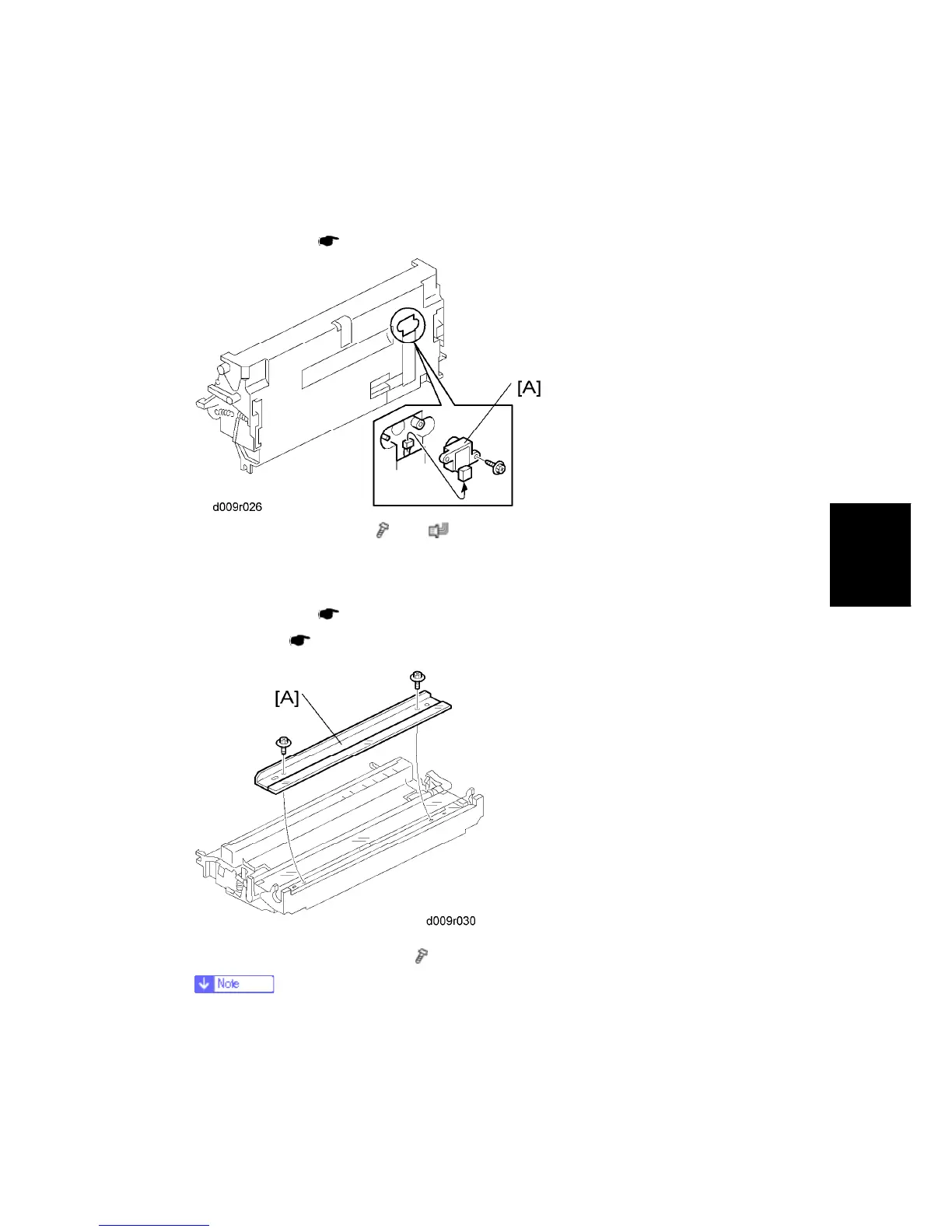

4.9.3 TONER OVERFLOW SENSOR
1. Transfer belt unit ( p.4-46)
2. Toner overflow sensor [A] ( x 1, x 1)
4.9.4 TRANSFER BELT CLEANING BLADE
1. Transfer belt unit ( p.4-46)
2. Transfer belt (
p.4-47)
3. Transfer belt cleaning blade [A] (
x 2)
 Avoid touching the edge of the new blade. Check the new blade for dust or
damage.
