Scanner -1

SM 4-11 D009/D011/D012/D013/D091/D092

Replacement

Adjustment

Color Scanner Model (D011/D013/D091/D092)

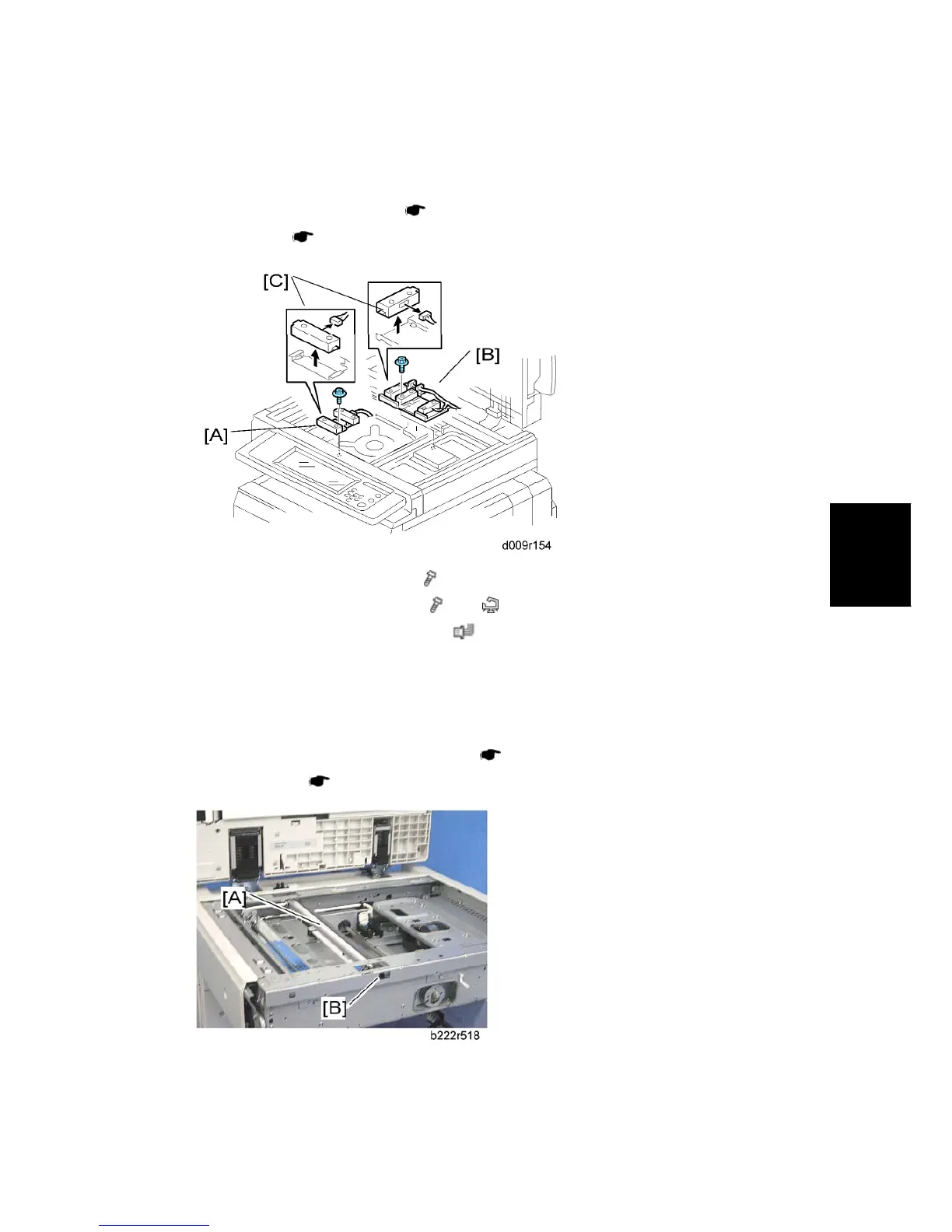

1. Exposure glass with left scale ( p.4-9)

2. Ground plate (

p.4-14)

3. Original width sensor bracket [A] (

x 1)

4. Original length sensor bracket [B] (

x 1, x 2)

5. Original width and length sensors [C] (

x 1 each)

4.4.3 EXPOSURE LAMP

Color Scanner Model (D011/D013/D091/D092)

1. Operation panel with scanner front cover ( p.4-6)

2. Exposure glass (

p.4-9)

3. Move the 1st scanner carriage [A] to the cutout [B] in the front frame.
