1.7 CONNECTING PROCEDURE FOR MAINFRAME

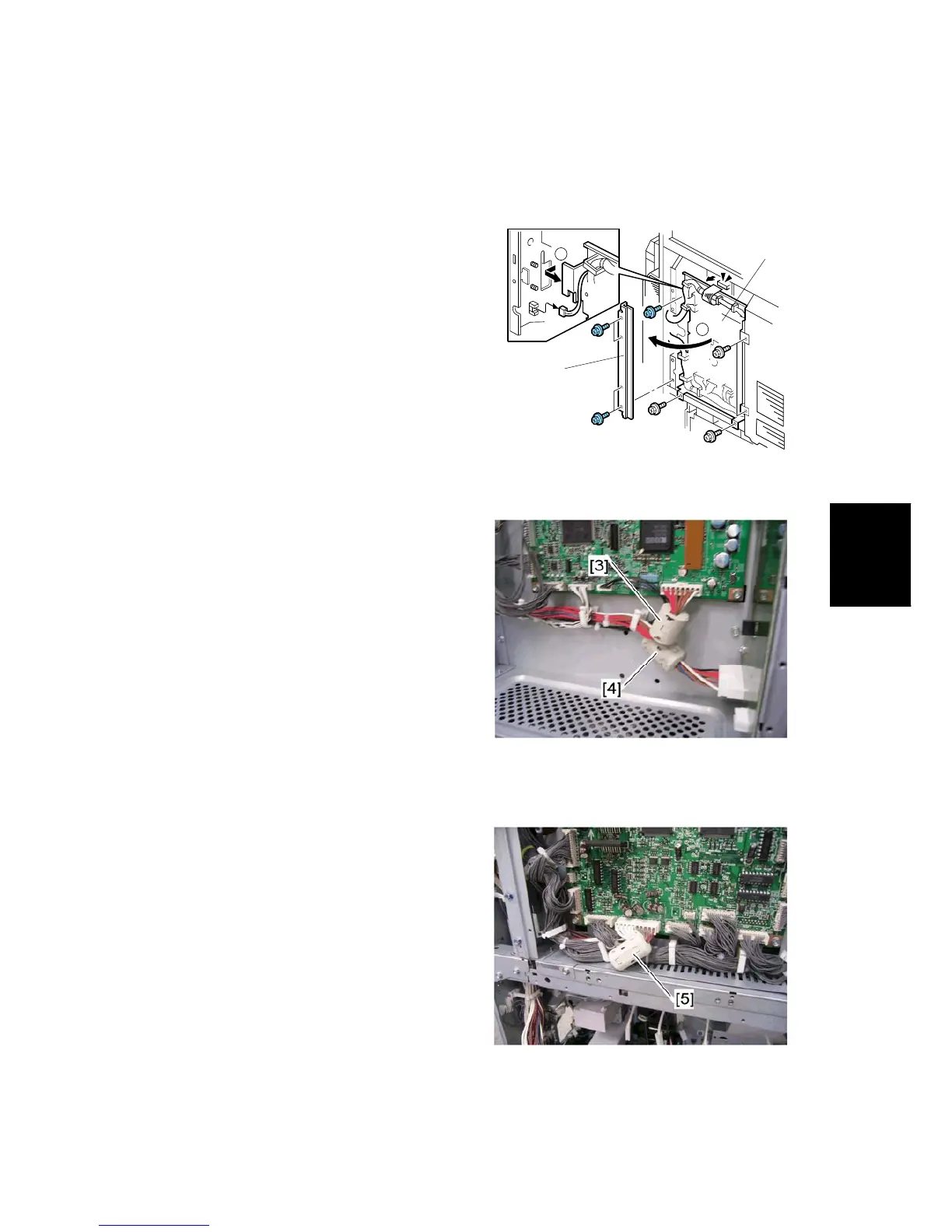

1. Controller box stay [1] ( x 4)

2. Open the IOB bracket [2] ( x 5, flat

cable x 1,  x 1).

3. Install the core [3] (TFC16816) in

the harness of CN510 (on the IPU)

and the core [4] (RFC-8) in the

harness of CN540 (on the MB).

4. Close the IOB bracket [2] ( x 5,

flat cable x 1,  x 1).

5. Reinstall the controller box stay [1]

( x 4).

6. Install the core [5] (RFC-5) in the

brown and red harnesses of CN201

(on the IOB).
