Scanner -1
SM 4-17 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment
4.4.8 SCANNER HP SENSOR
1. Rear cover ( p.4-4)
2. Scanner left cover and Scanner top rear cover (
p.4-13)
3. Exposure glass (
p.4-9)

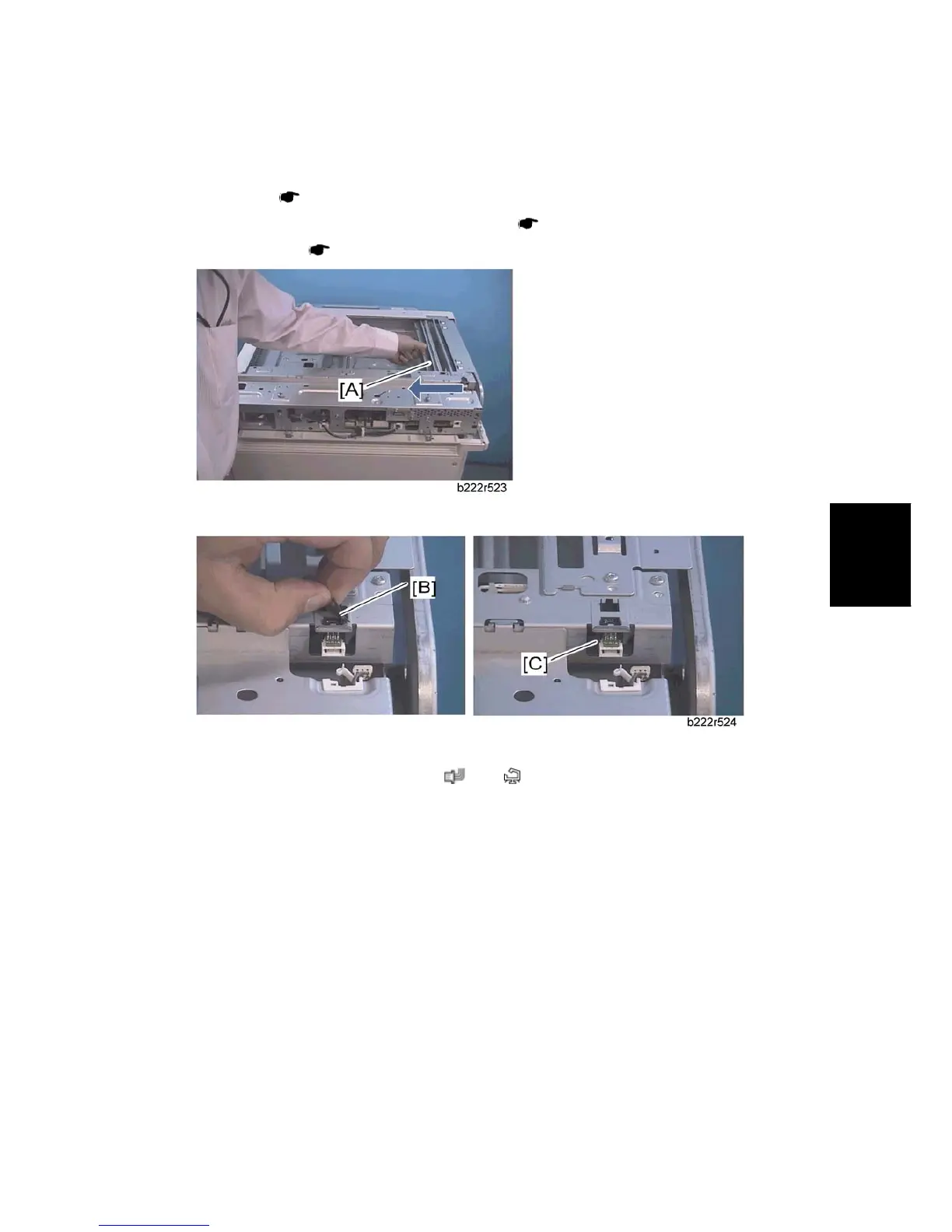

4. Move the 1st scanner carriage [A] to the right side.
5. Remove the mylar [B]
6. Remove the scanner HP sensor [C] (
x 1, x 1, two snaps)
