Ricoh D009 User Manual

Electrical Components
B802 12 SM
1.3.10 STAMP SOLENOID

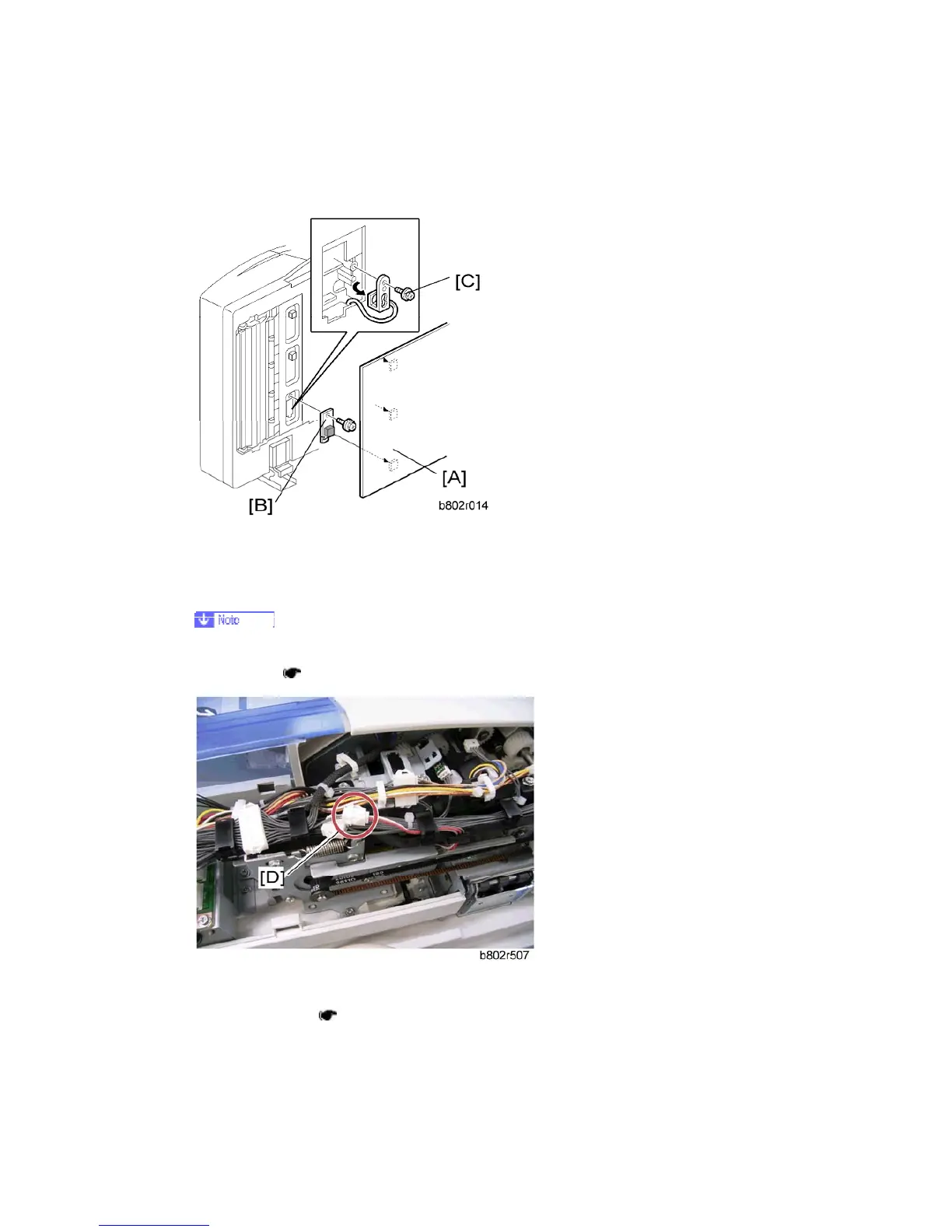

1. Open the left cover.
2. Remove the platen plate [A].
3. Stamp solenoid cover [B] (

x 1)
4. Remove the screw [C] (

x 1).

You cannot remove the stamp solenoid at this time.
5. Rear cover (
1.1.1. "Front and Rear Cover")
6. Disconnect the stamp solenoid harness [D].
7. ADF feed motor (
1.4.1 "ADF Feed Motor")
