1000-Sheet
Finisher
B408
STAPLER UNIT MOVEMENT MECHANISM
SM 23 B408
4.12 STAPLER UNIT MOVEMENT MECHANISM

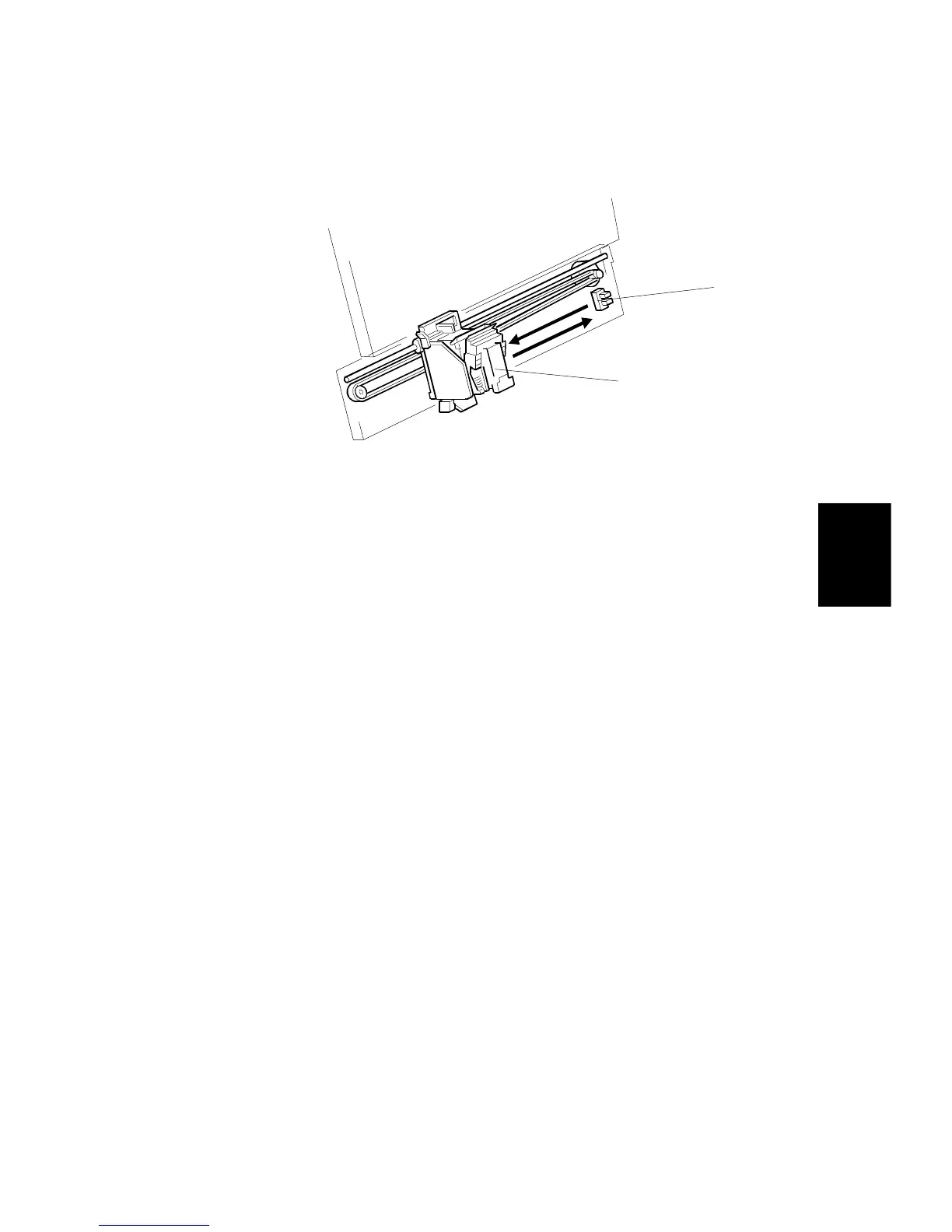

The stapler motor moves the stapler [A] from side to side. After the start key is
pressed, the stapler moves from its home position to the stapling position.
If two-staple-position mode is selected, the stapler moves to the front stapling
position first, then moves to the rear stapling position. However, for the next copy
set, it staples in the reverse order (at the rear side first, then at the front side).
After the job is completed, the stapler moves back to its home position. The stapler
HP sensor [B] detects this.
B408D117.WMF
[A]
[B]
