Electrical Components
SM 4-95 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment

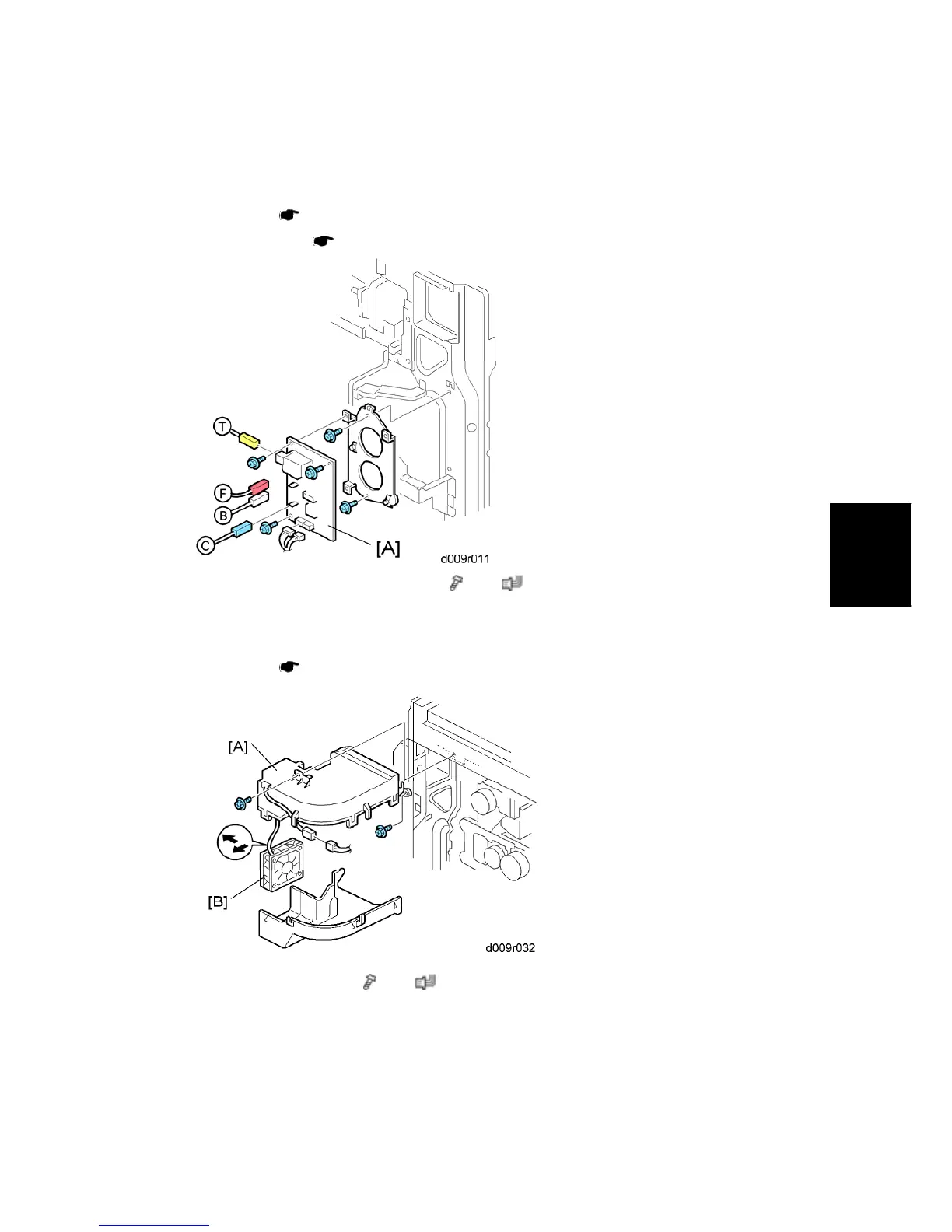

4.16.8 HIGH VOLTAGE POWER SUPPLY BOARD
1. Rear cover ( p.4-4)
2. Right rear cover (
p.4-5)
3. High voltage power supply board [A] (
x 3, x all)
4.16.9 FUSING EXHAUST FAN
1. Rear cover ( p.4-4)
2. Fusing exhaust duct [A] (
x 2, x 1)
3. Separate the duct (hooks).
4. Fusing exhaust fan [B]
