Removal Procedure for Covers
SM 5 B838
Scanner
Accessibility
Option
B838

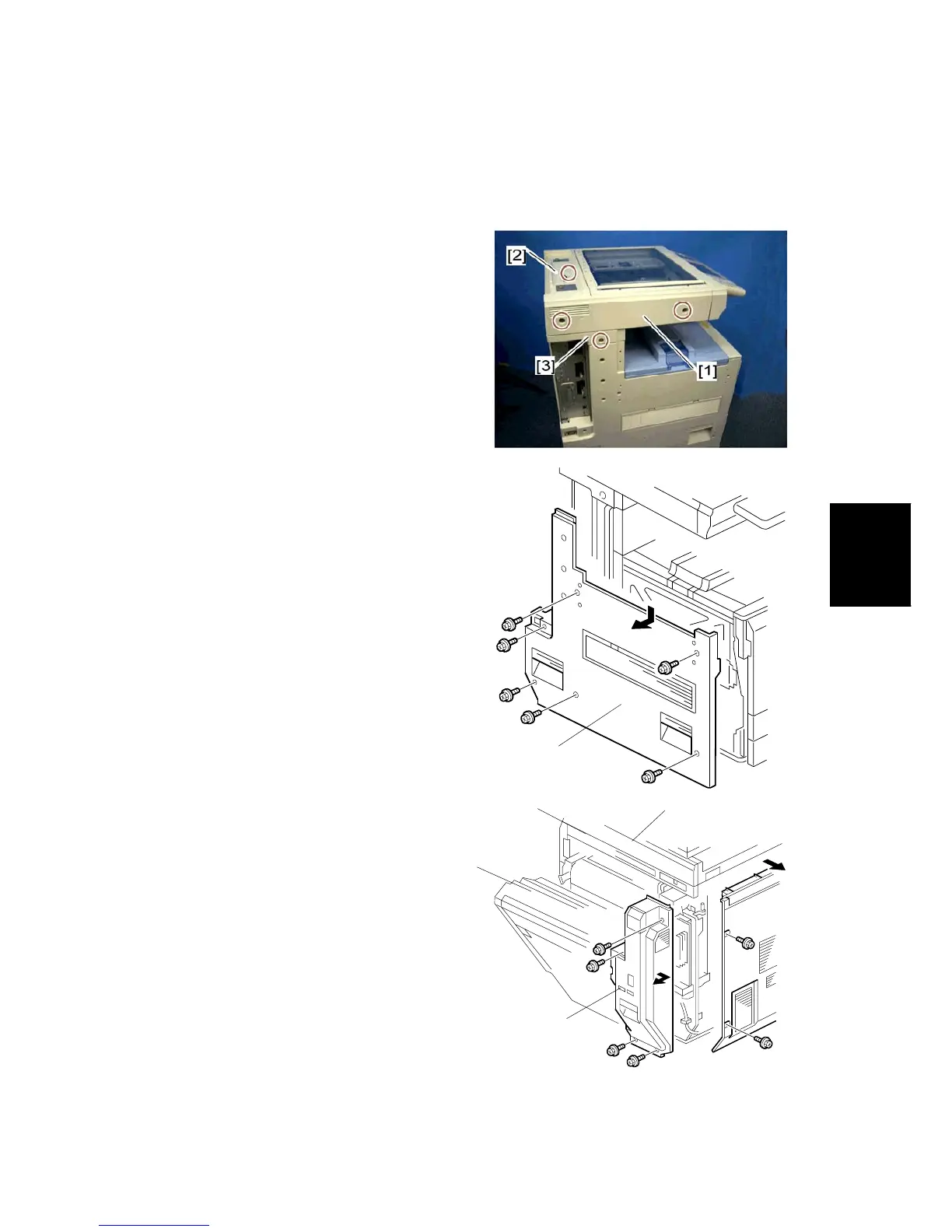

1.2 REMOVAL PROCEDURE FOR COVERS
1. Scanner left cover [1] ( x 2)
2. Slide the scanner rear cover [2] to
the left side, and then remove it (
x 1, hook x 2).
3. Left rear cover [3] ( x 1)
4. Left cover [4] ( x 6)
5. Scanner right cover [5] ( x 2)
6. Right top cover [6] ( x 1)
7. Open the right door [7].
8. Right rear cover [8] ( x 4)
B838R201.WMF
B222R305.WMF
[4]
[8]
[7]
[6]
[5]
To Next Page
