Installation Flow Chart
SM 2-5 D009/D011/D012/D013/D091/D092
Installation

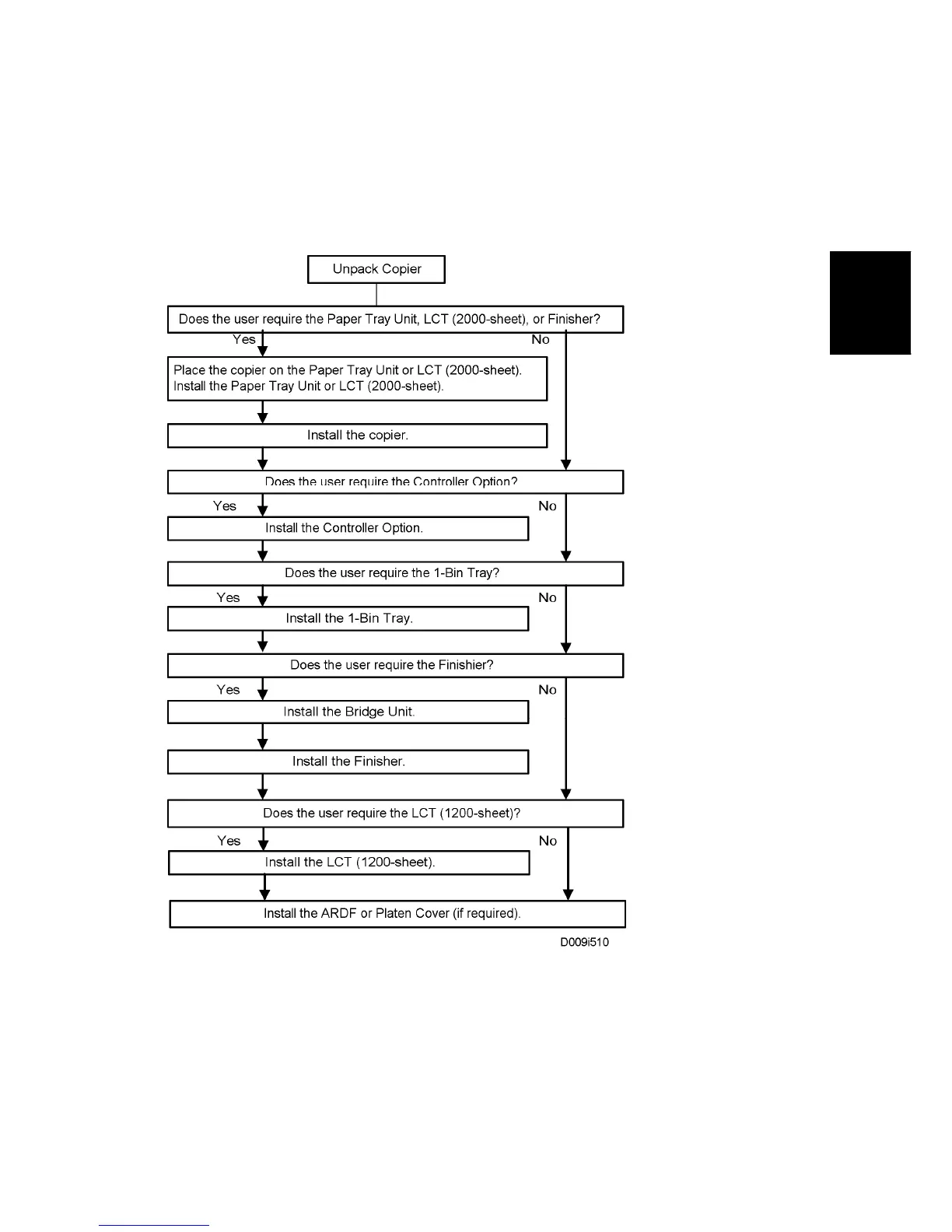

2.2 INSTALLATION FLOW CHART
The following flow chart shows how to install the optional units more efficiently.
Bridge Unit: Needed for the finishers.
Paper Tray Unit or LCT 2000-sheet: Needed for the LCT 1200-sheet and finishers.
