Scanner -1
SM 4-9 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment
4.4 SCANNER -1

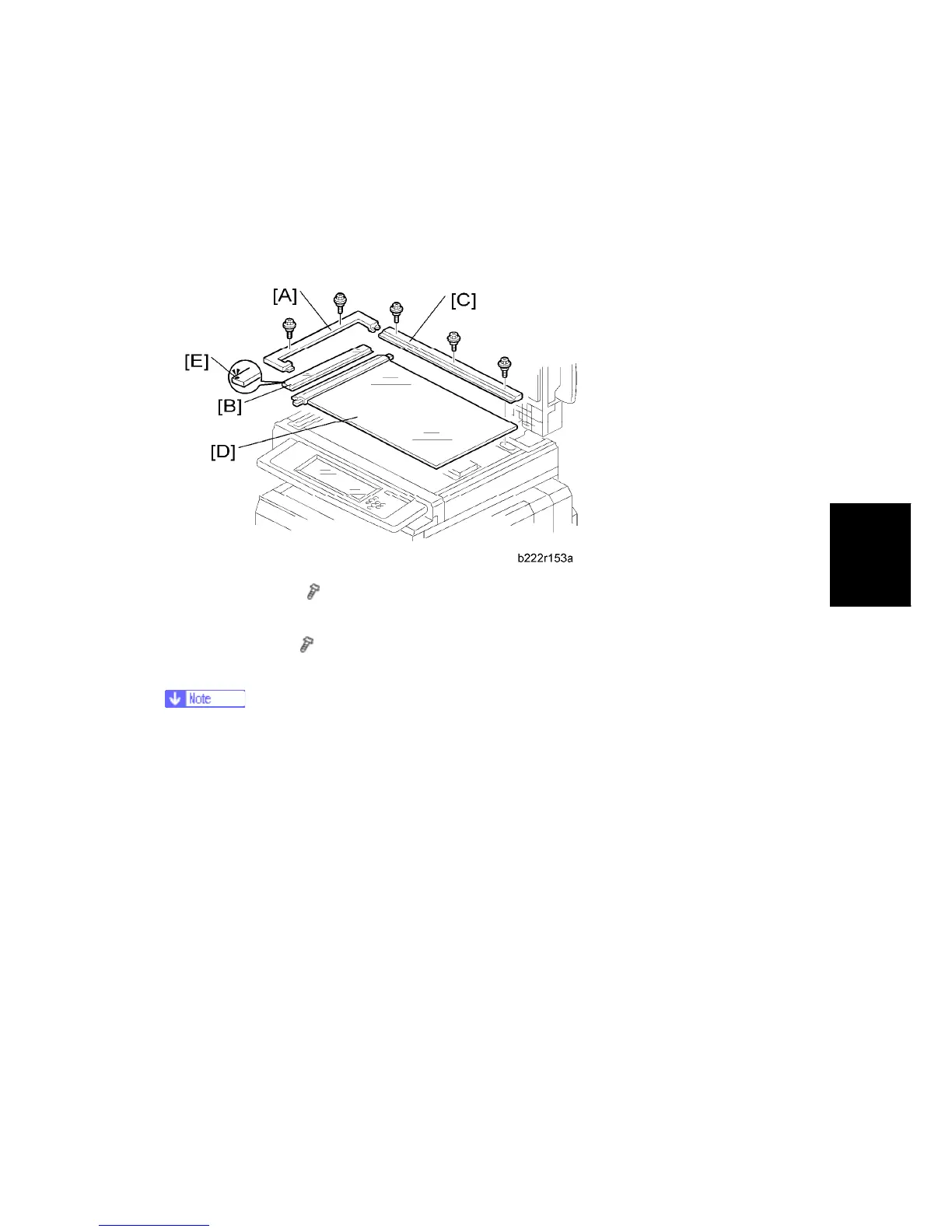

4.4.1 EXPOSURE GLASS
1. Glass cover [A] (
x 2)
2. ARDF exposure glass [B]
3. Rear scale [C] (
x 3)
4. Exposure glass with left scale [D]
 Position the black marker [E] at the front-left corner when you reattach the ARDF
exposure glass.
