Drive Area
SM 4-87 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment

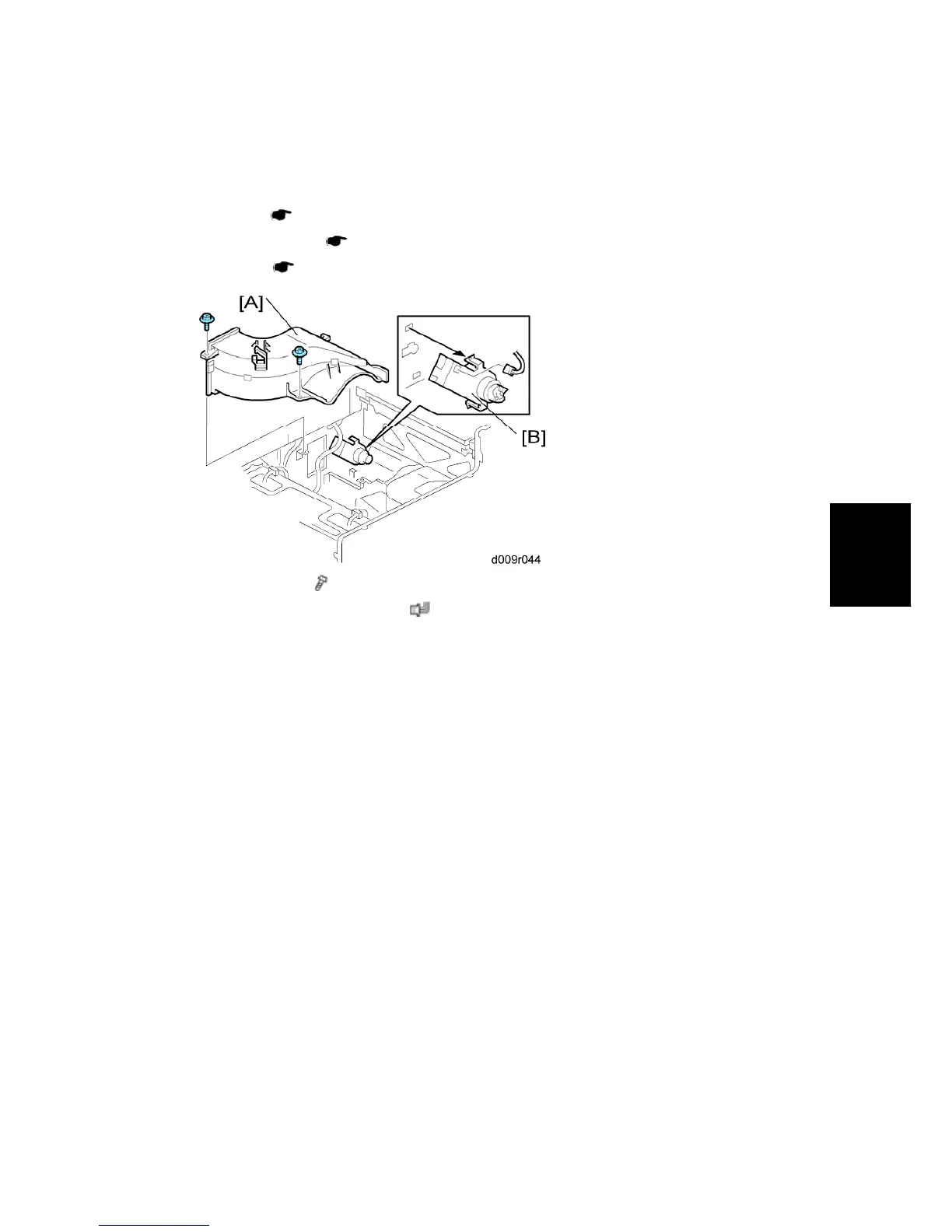

4.15.10 TONER SUPPLY MOTOR
1. Left cover ( p.4-4)
2. Upper inner cover (
p.4-3)
3. Inner Tray (
p.4-8)
4. Exhaust duct [A] (
x 2)
5. Toner supply motor [B] (hooks,
x 1)
