Connecting Procedure for Op Panel
B838 20 SM
1.5 CONNECTING PROCEDURE FOR OP PANEL

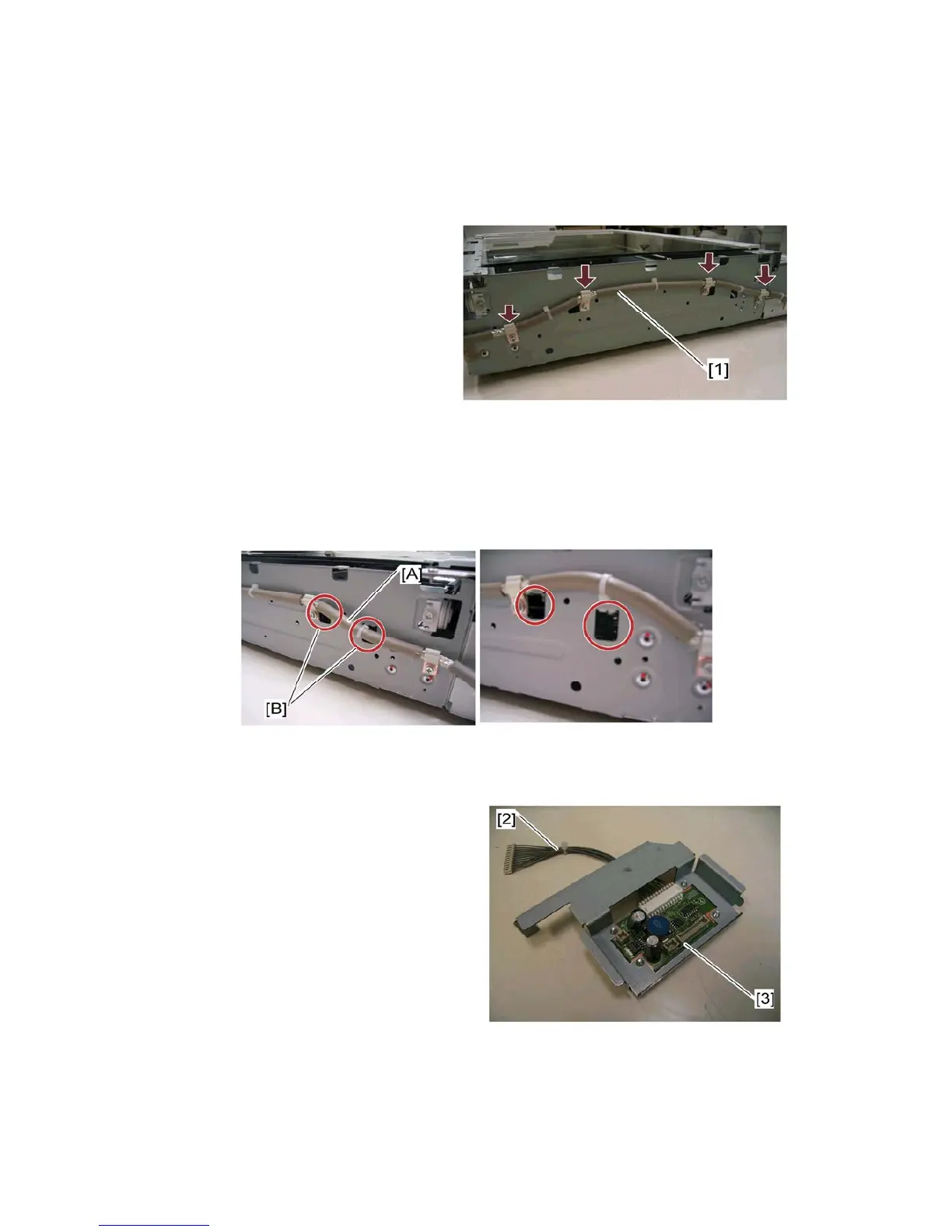

1. Route and attach the operation
panel I/F cable to the outside of
the scanner right frame with
four plate clamps ( x 4; screw
- tapping M3x8).
NOTE: Make sure that the operation panel I/F cable [A] does not cover the
three cutouts [B].
2. Connect the harness [2] to the
operation panel interface board
[3] as shown.
