Fusing
D009/D011/D012/D013/D091/D092 4-64 SM

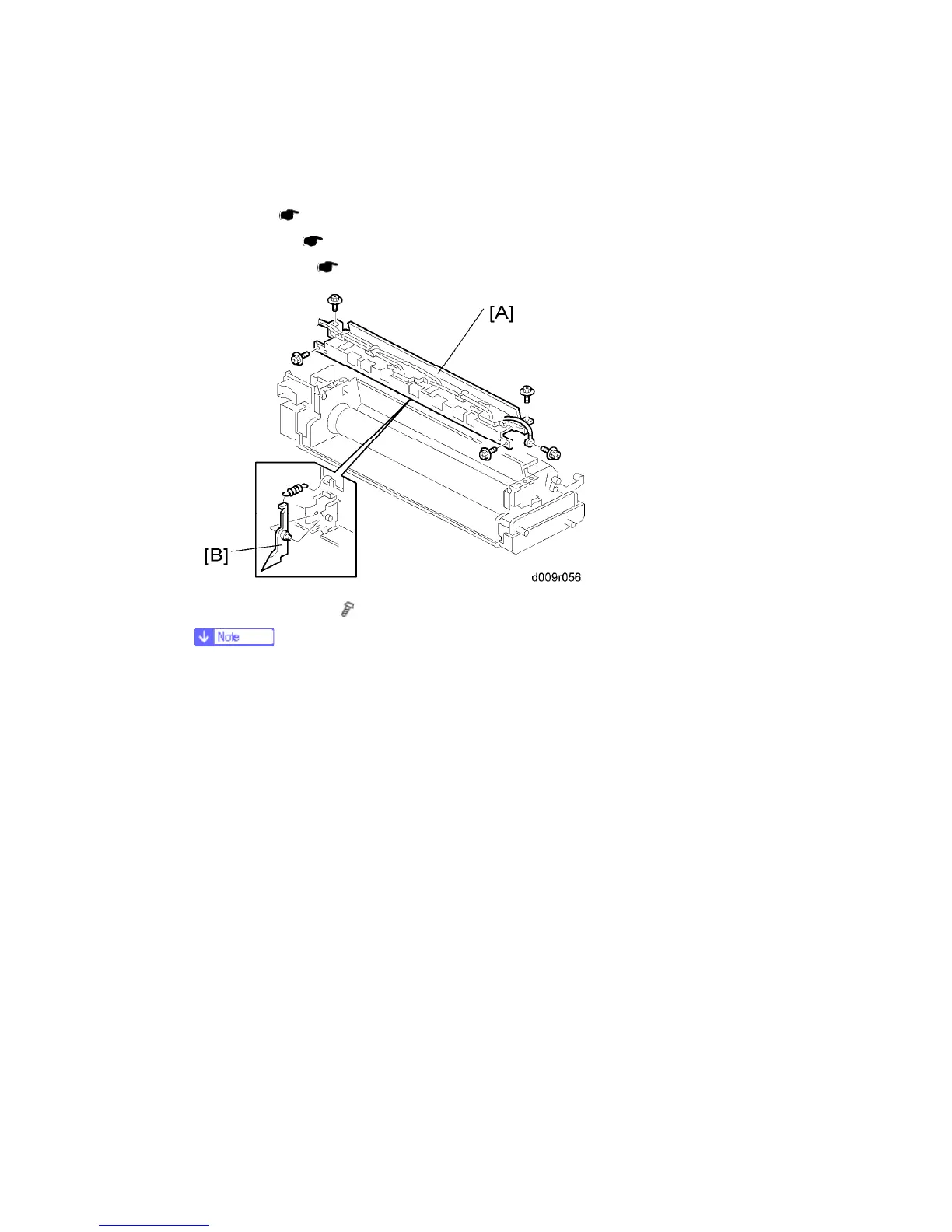

4.11.8 HOT ROLLER STRIPPERS
1. Fusing unit ( p.4-56)
2. Web roller unit (
p.4-57)
3. Fusing top cover (
p.4-62)
4. Fusing top frame [A] (
x 5)
 The cords on this frame are still connected to the fusing unit at this time. Be
careful not to damage the cords when removing the hot roller stripper [B].
5. Hot roller stripper [B] (spring x 1)
