Scanner -1

SM 4-15 D009/D011/D012/D013/D091/D092

Replacement

Adjustment

Color Scanner Model (D011/D013/D091/D092)

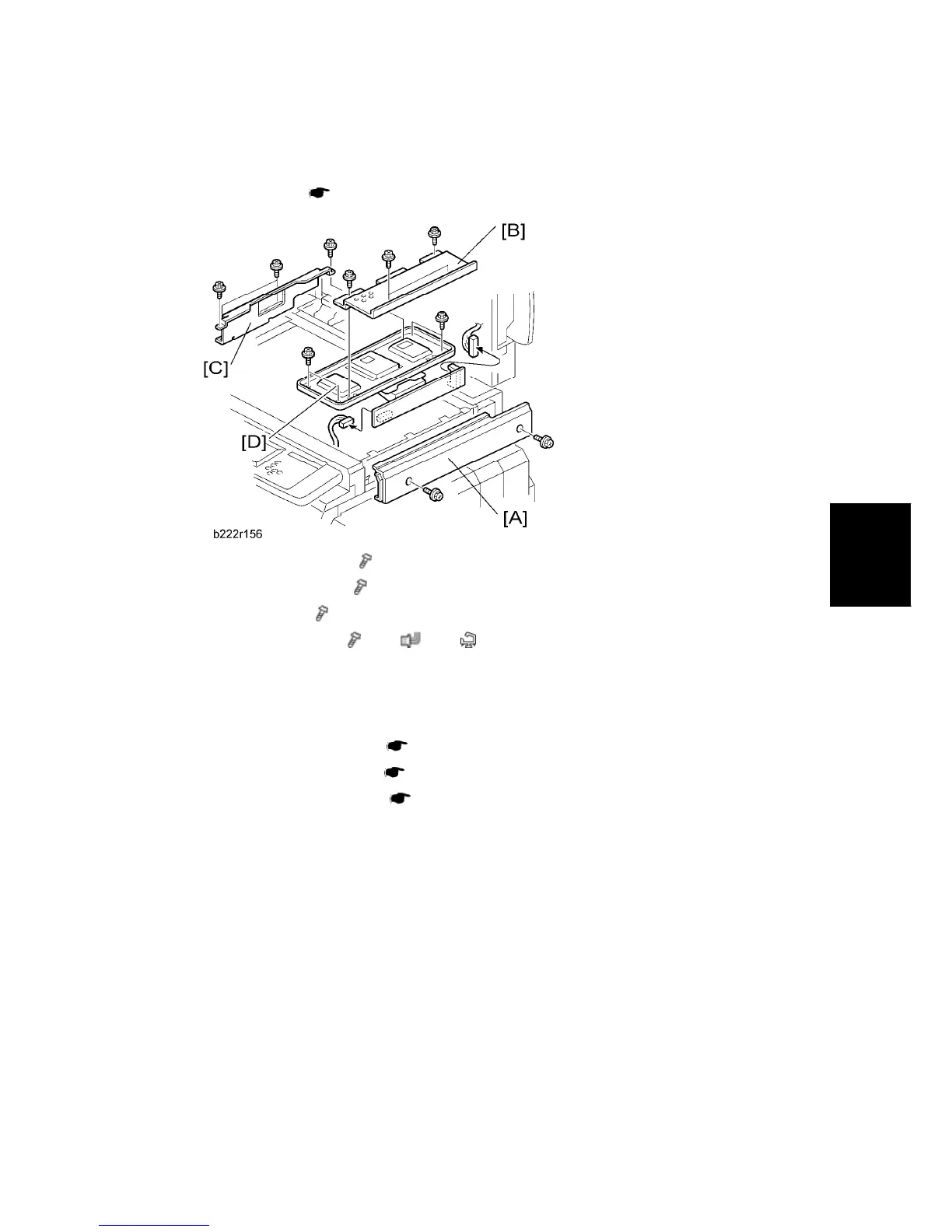

1. Exposure glass ( p.4-9)

2. Scanner right cover [A] (

x 2)

3. SBU cover bracket [B] (

x 4)

4. Ground plate [C] (

x 4)

5. Sensor board unit [D] (

x 4, x 3, x 1)

When reassembling

Adjust the following SP modes after you replace the sensor board unit:

 SP4–008 (Sub Scan Mag): (

p.4-101)

 SP4–010 (Sub Mag Reg.): (

p.4-101)

 SP4–011 (Main Scan Reg): (

p.4-101)

 SP4–688 (DF: Density Adjustment): Use this to adjust the density level if the ID of

outputs made in the DF and Platen mode is different.
