Platen Cover Installation (G329)
SM 2-35
D009/D01
1/D012/D013/D091/D092
Inst
allation
2.8

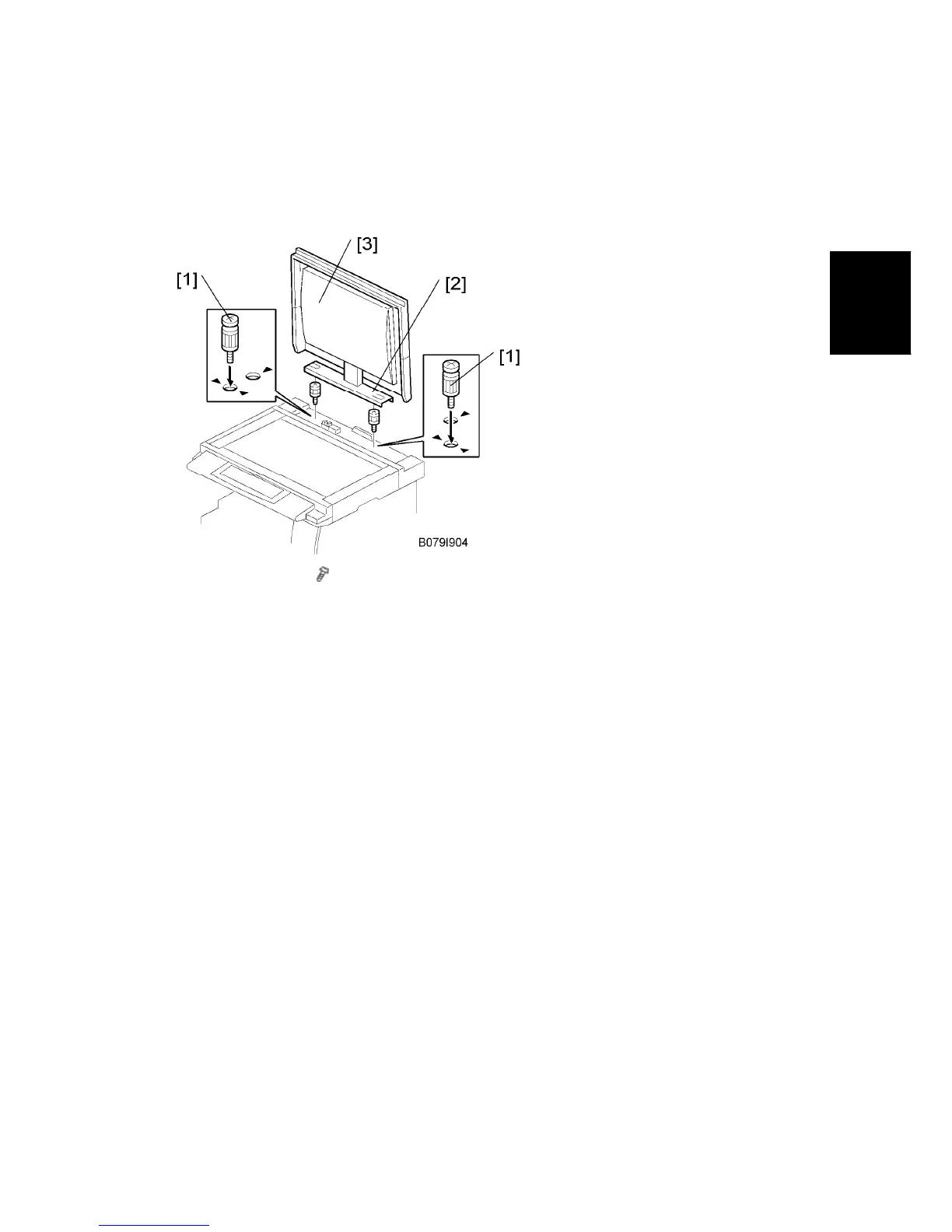

PLATEN COVER INSTALLATION (G329)
1.
Install screws [1] (
x 2) on the top cover as shown.
2.
Position the platen cover bracket [2] on the heads of the stud
screws, and slide the
platen cover [3] to the left.
