Component Layout
SM 15 D353
1200 Sheet
LCT RT3000
D353

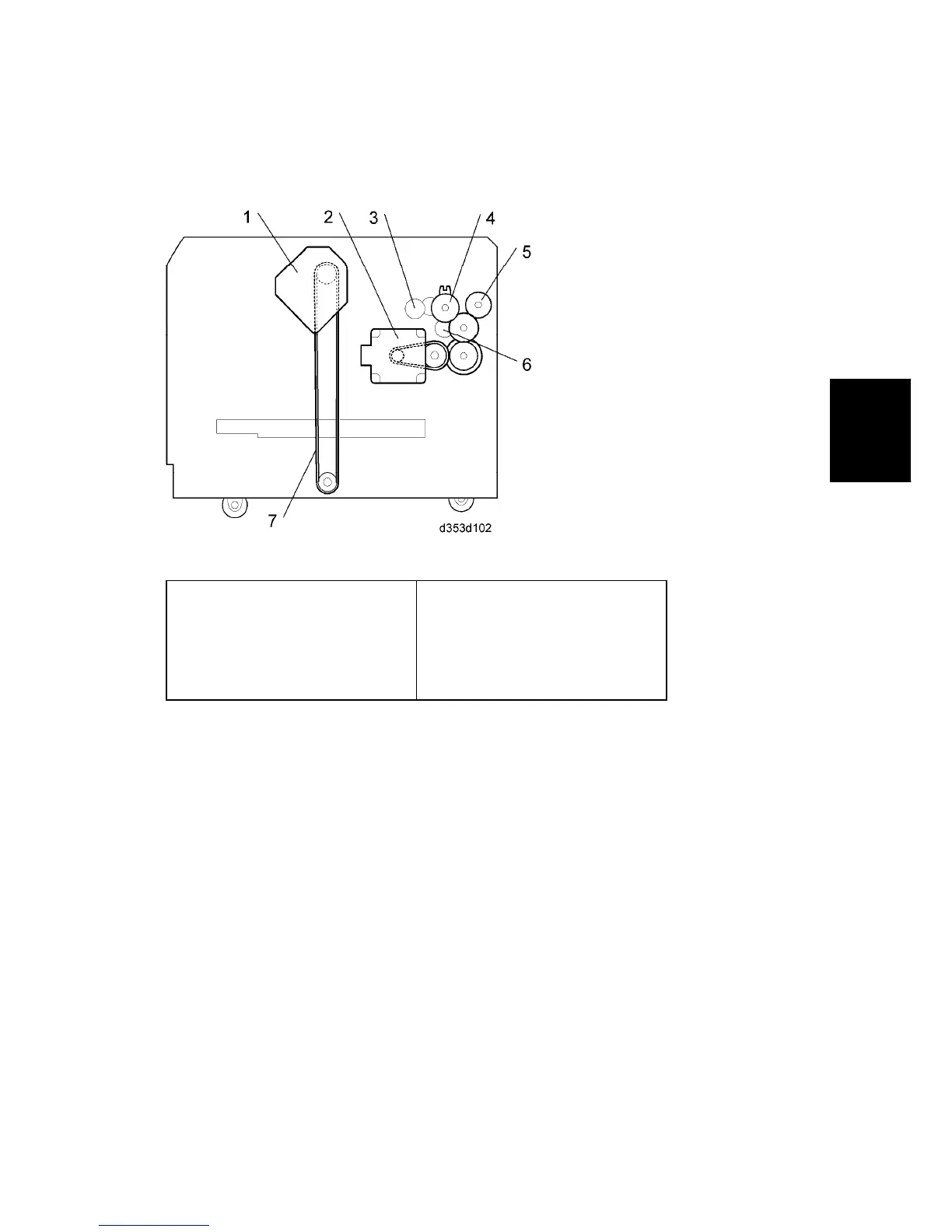

2.1.4 DRIVE LAYOUT
1. Tray Lift Motor
2. Paper Feed Motor
3. Pick-up Roller
4. Paper Feed Clutch
5. Relay Roller
6. Separation Roller
7. Tray Drive Belt
