Auto Reverse Document Feeder (B802)
SM 2-31 D009/D011/D012/D013/D091/D092
Installation
2.7.2 INSTALLATION PROCEDURE
 Unplug the copier power cord before starting the following procedure.

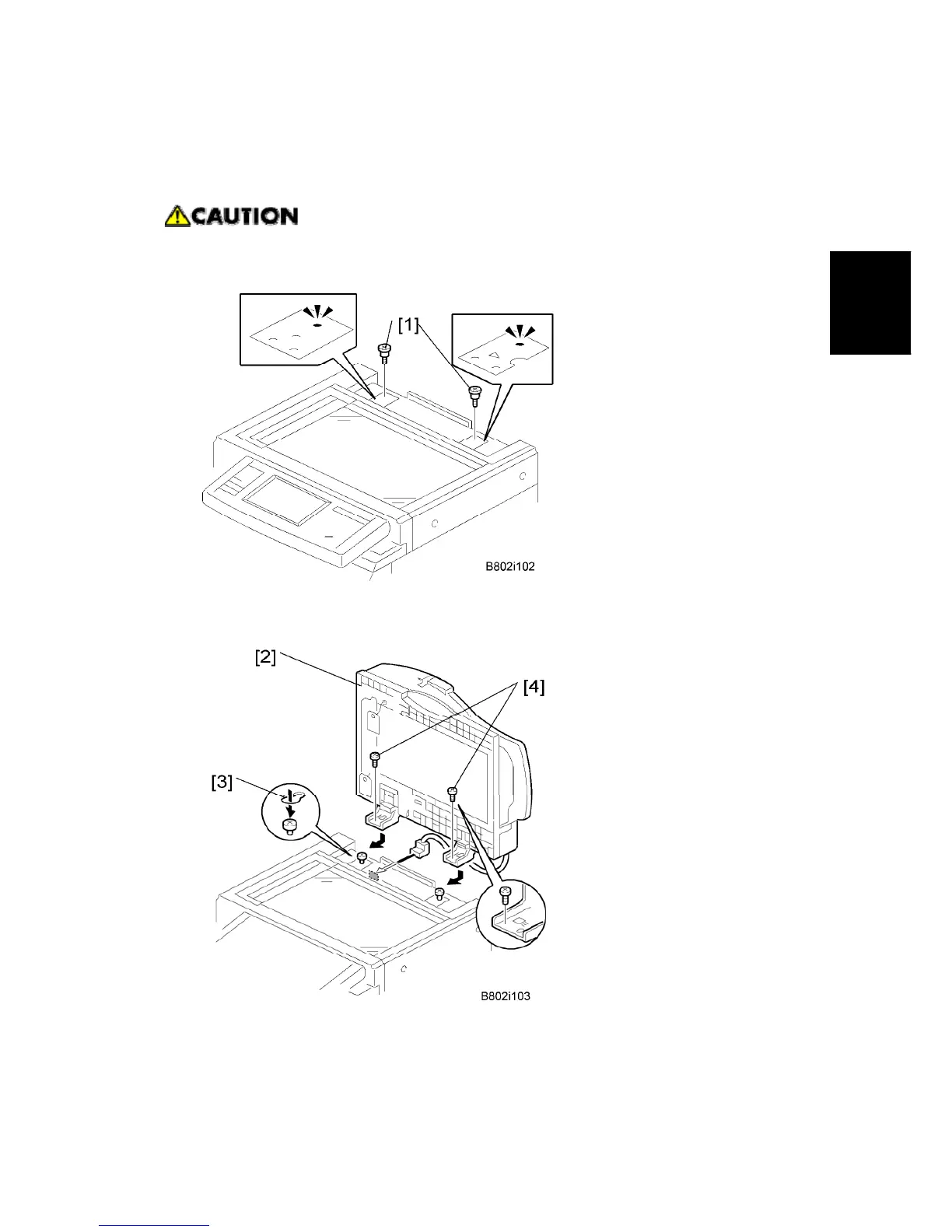

1. Remove the all tapes and shipping retainers.
2. Insert the two stud screws [1] on the top of the machine.
3. Mount the ARDF [2] by aligning the screw keyholes [3] of the ARDF support plate over
the stud screws.
To Next Page
