Drive Area
D009/D011/D012/D013/D091/D092 4-86 SM

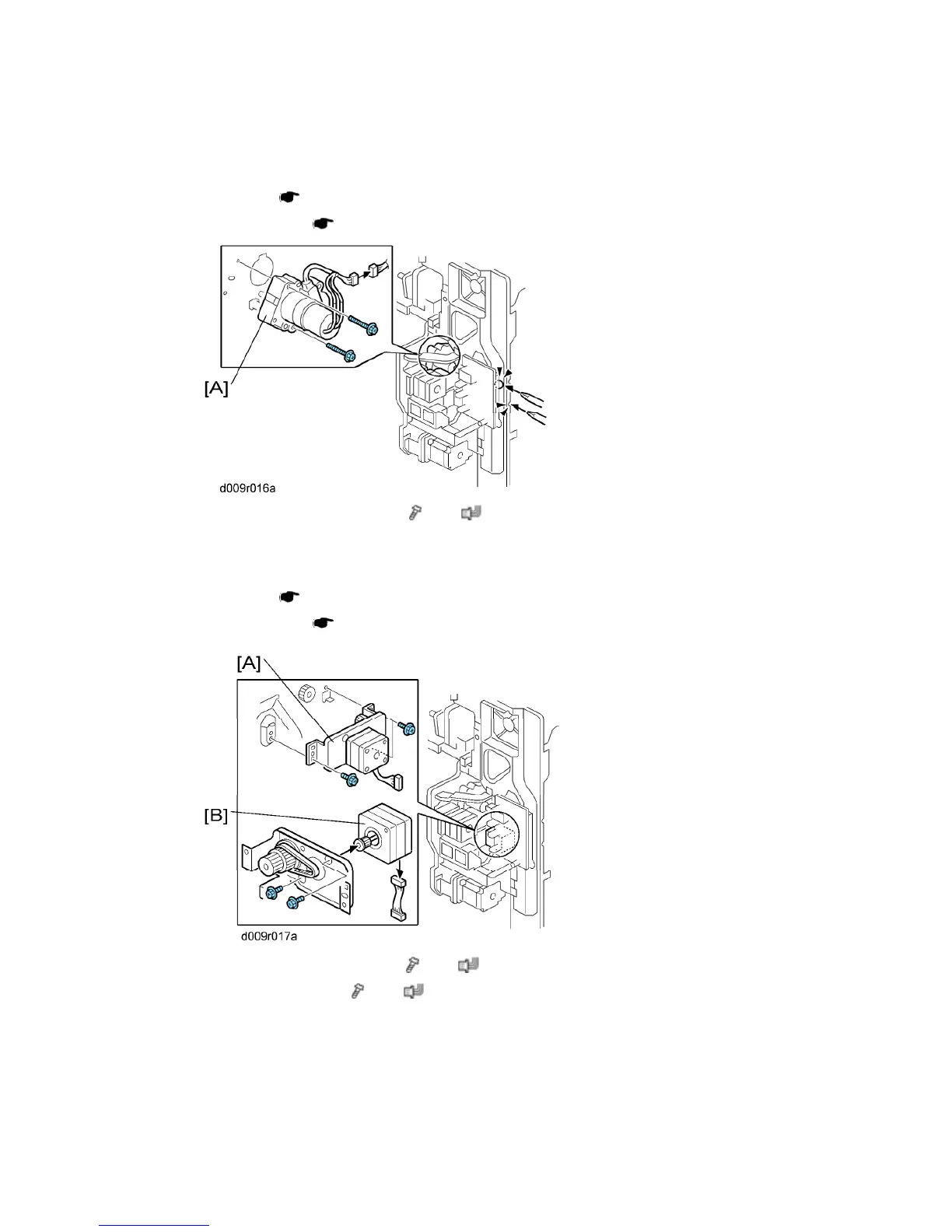

4.15.8 TRANSFER BELT CONTACT MOTOR
1. Rear cover ( p.4-4)
2. Right rear cover (
p.4-5)
3. Transfer belt contact motor [A] (
x 2, x 1)
4.15.9 REGISTRATION MOTOR
1. Rear cover ( p.4-4)
2. Right rear cover (
p.4-5)
3. Registration motor bracket [A] ( x 3, x 1)
4. Registration motor [B] (
x 2, x 1)
