Original Feed Drive

SM 15 B802

Auto Reverse

Doc Feeder

B802

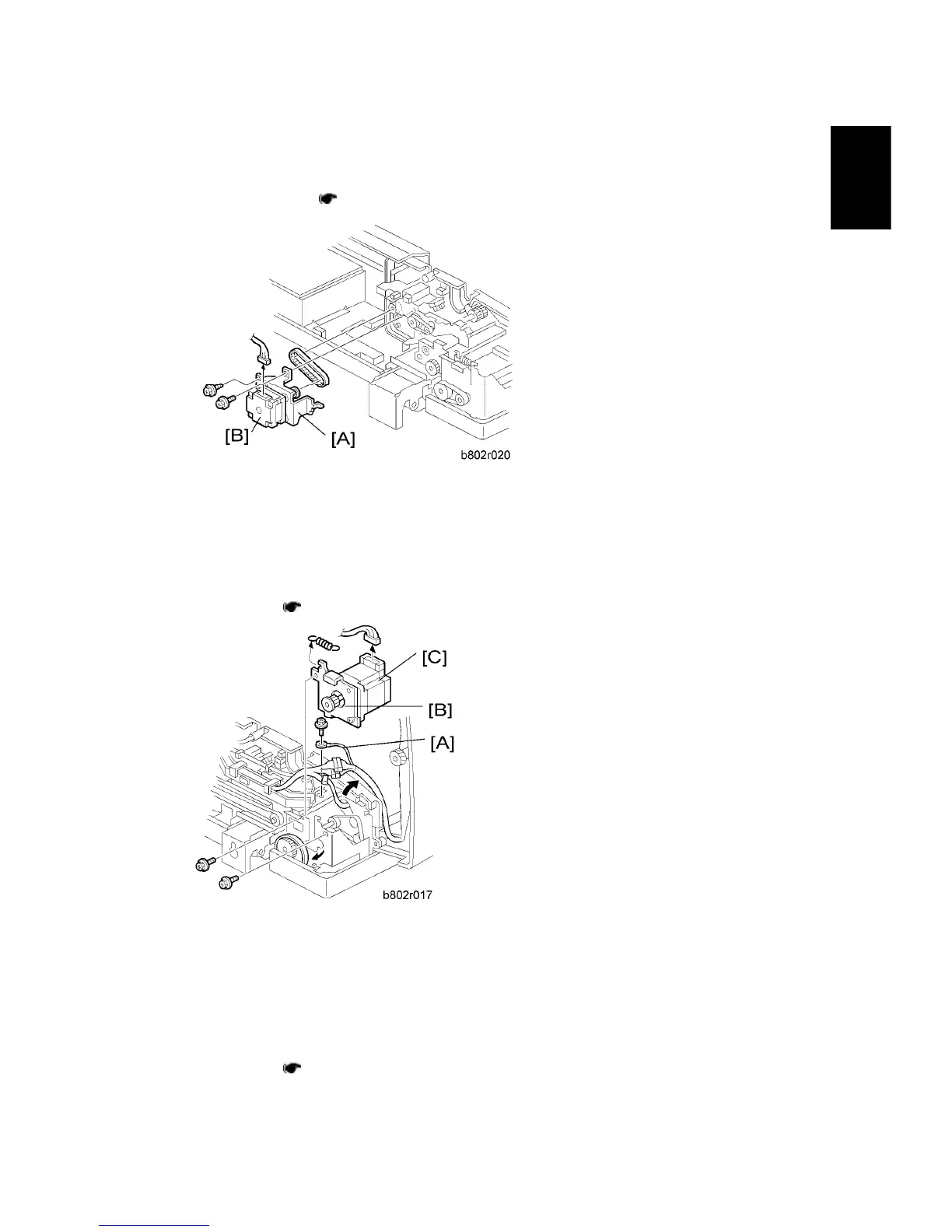

1.4.2 ADF INVERTER MOTOR

1. ADF feed motor ( 1.4.1 " ADF Feed Motor")

2. ADF inverter motor bracket [A] (



x 2,



x 1, timing belt)

3. ADF inverter motor [B] (



x 4)

1.4.3 ADF TRANSPORT MOTOR

1. Rear cover ( 1.1.1 "Front and Rear Cover")

2. Ground cable [A] (



x 1)

3. ADF transport motor bracket [B] (



x 2,



x 1)

4. ADF transport motor [C] (



x 2)

1.4.4 ADF PICK-UP MOTOR

1. Rear cover ( 1.1.1 "Front and Rear Cover")
