Fusing
D009/D011/D012/D013/D091/D092 4-66 SM

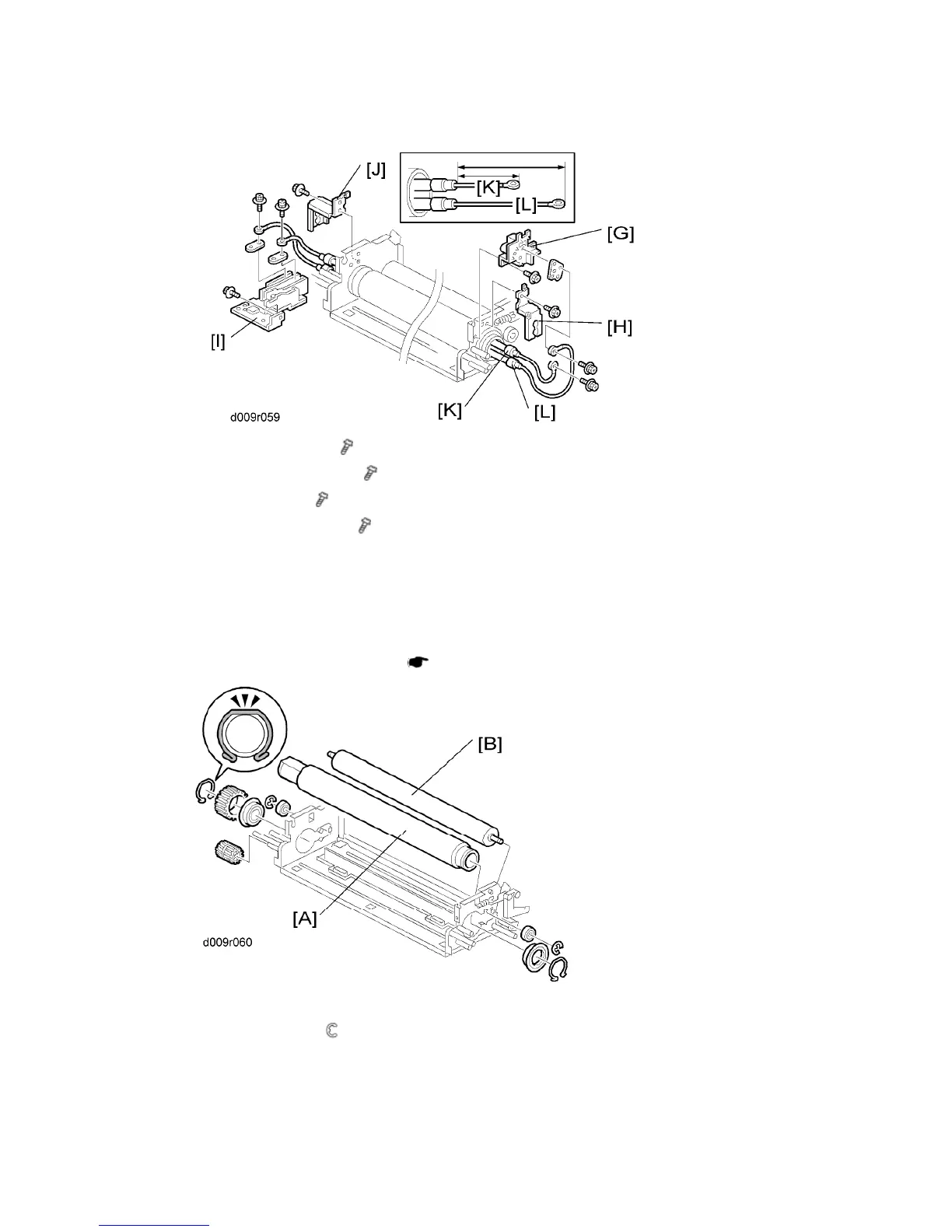

10. Terminal bracket [G] (
x 4)
11. Front holder bracket [H] (
x 1)
12. Terminal base [I] (
x 3)
13. Rear holder bracket [J] (
x 1)
14. Fusing lamp-Center (550W) [K]
15. Fusing lamp-End (750W) [L]
4.11.10 HOT ROLLER AND PRESSURE ROLLER
1. Fusing lamps-Center and End ( p.4-65)
2. Hot roller [A] (snap ring x 2, gear x 2, bushing x 2)
3. Pressure roller [B] (
x 2, bushing x 2)
