1000-Sheet
Finisher
B408
MOTORS AND SENSORS
SM 7 B408

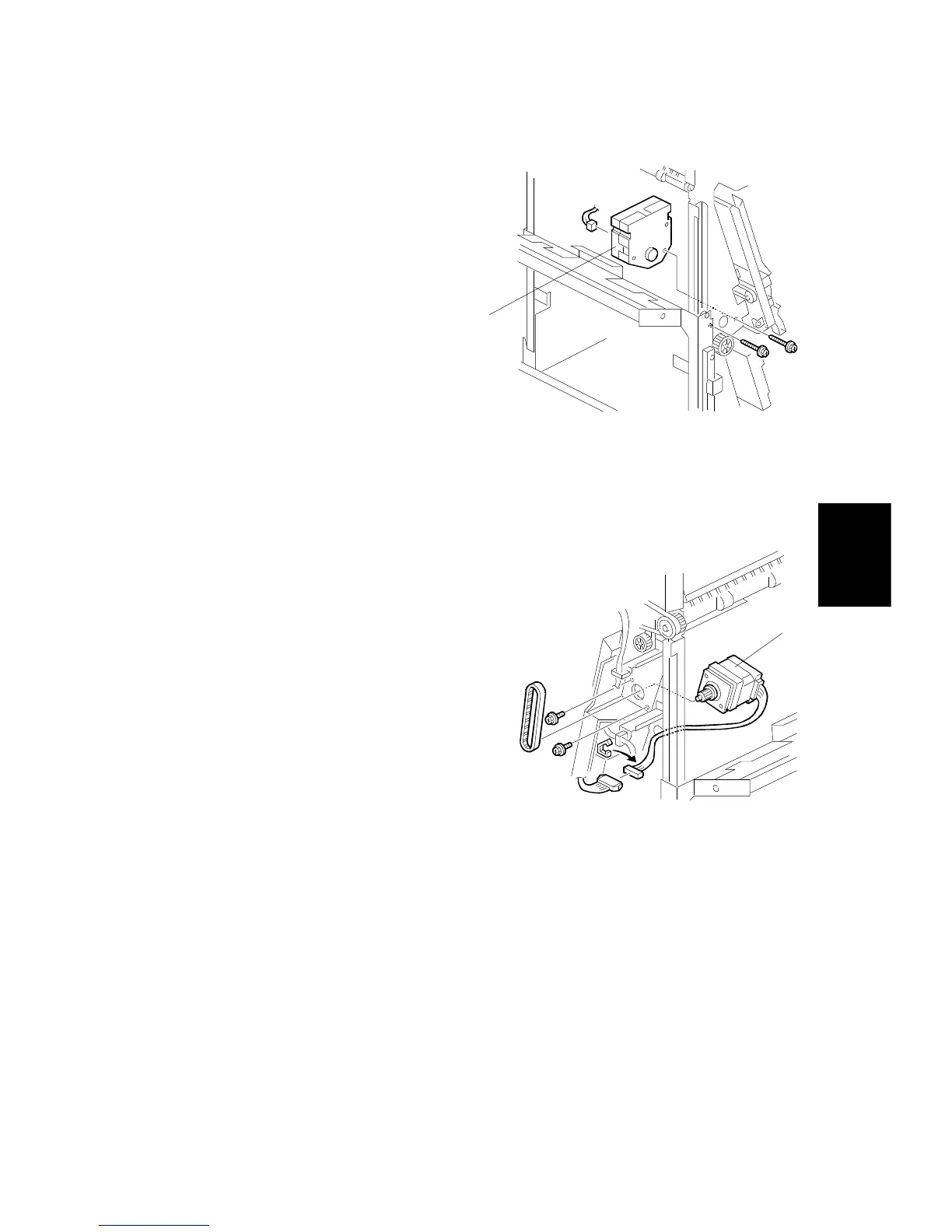

1.4.4 LOWER TRAY LIFT MOTOR
1. Lower tray lift motor [A] (
x 2,
x 1)
1.4.5 STACK FEED-OUT MOTOR
1. Stack feed-out motor [A] (
x 2,
x 1)
B408R119.WMF
B408R122.WMF
[A]
[A]
