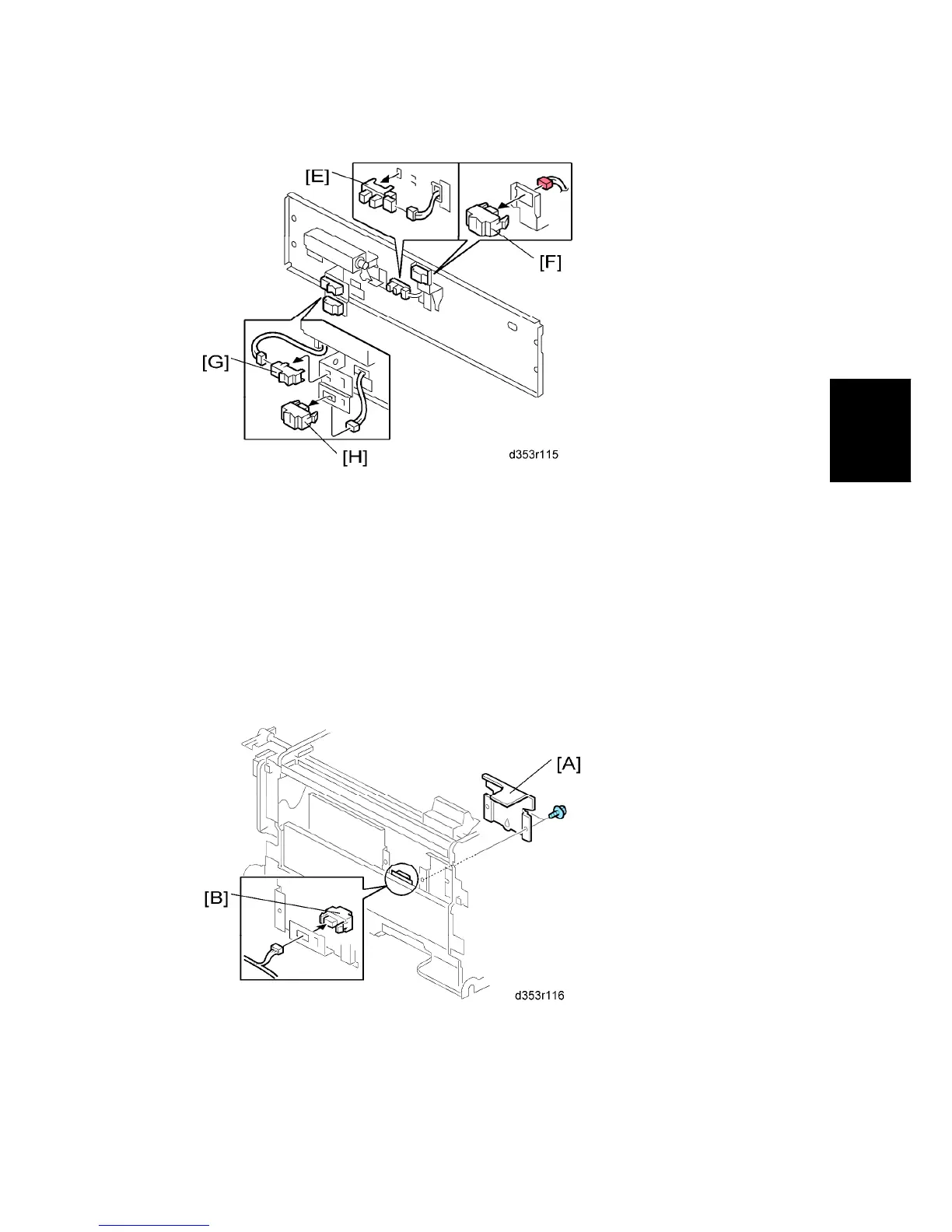

7. Sensors [E], [F], [G], [H] ( x 1, hooks each)
[E]: Tray lift sensor
[F]: Relay sensor
[G]: Paper feed sensor
[H]: Paper end sensor
1.4.5 STACK SENSOR
1. Open the right door
2. Paper feed unit ( p.7 "Paper Feed, Paper End, Tray Lift and Relay Sensors")
3. Sensor bracket [A] ( x 2)
4. Stack sensor [B] ( x 1)
