T
ray Heater
D009/D01
1/D012/D013/D091/D092 2-64
SM

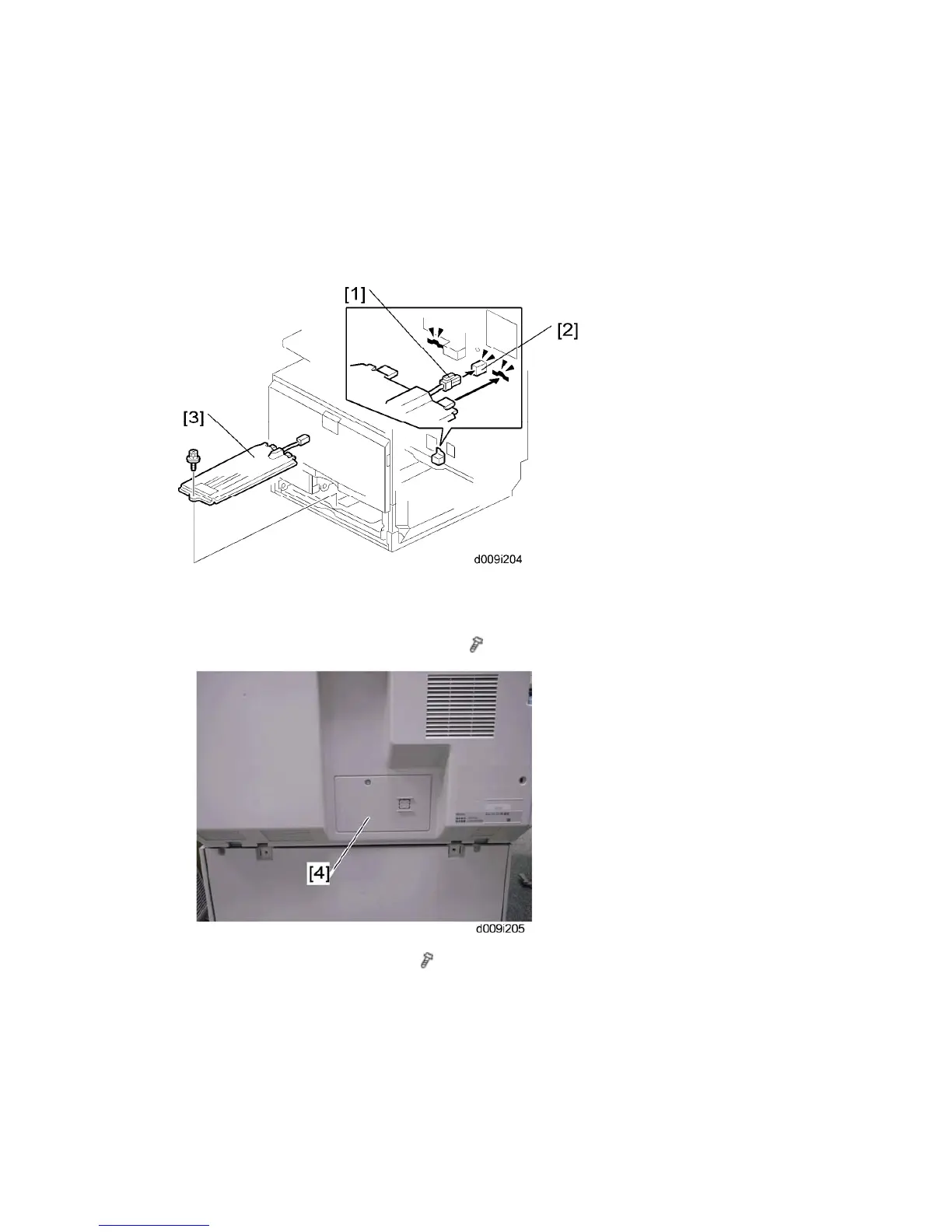

2.17 TRAY HEATER
2.17.1 INSTALLATION
PROCEDURE
1.
Remove trays 1 and 2 from the machine.
2.
Connect the connector [1] of
the heater to the connector [2] of the main machine.
3.
Install the heater [3] inside the machine (
x
1).
4.
Remove the connector cover [4] (
x
1).
109
111
