Paper Feed
D009/D011/D012/D013/D091/D092 4-50 SM
4.10 PAPER FEED
4.10.1 PAPER FEED UNIT
Tray 1 and Tray 2
1. Rear cover ( p.4-4)
2. Right rear cover (
p.4-5)
3. Duplex unit (
p.4-70)
4. Pull out tray 1 and tray 2.

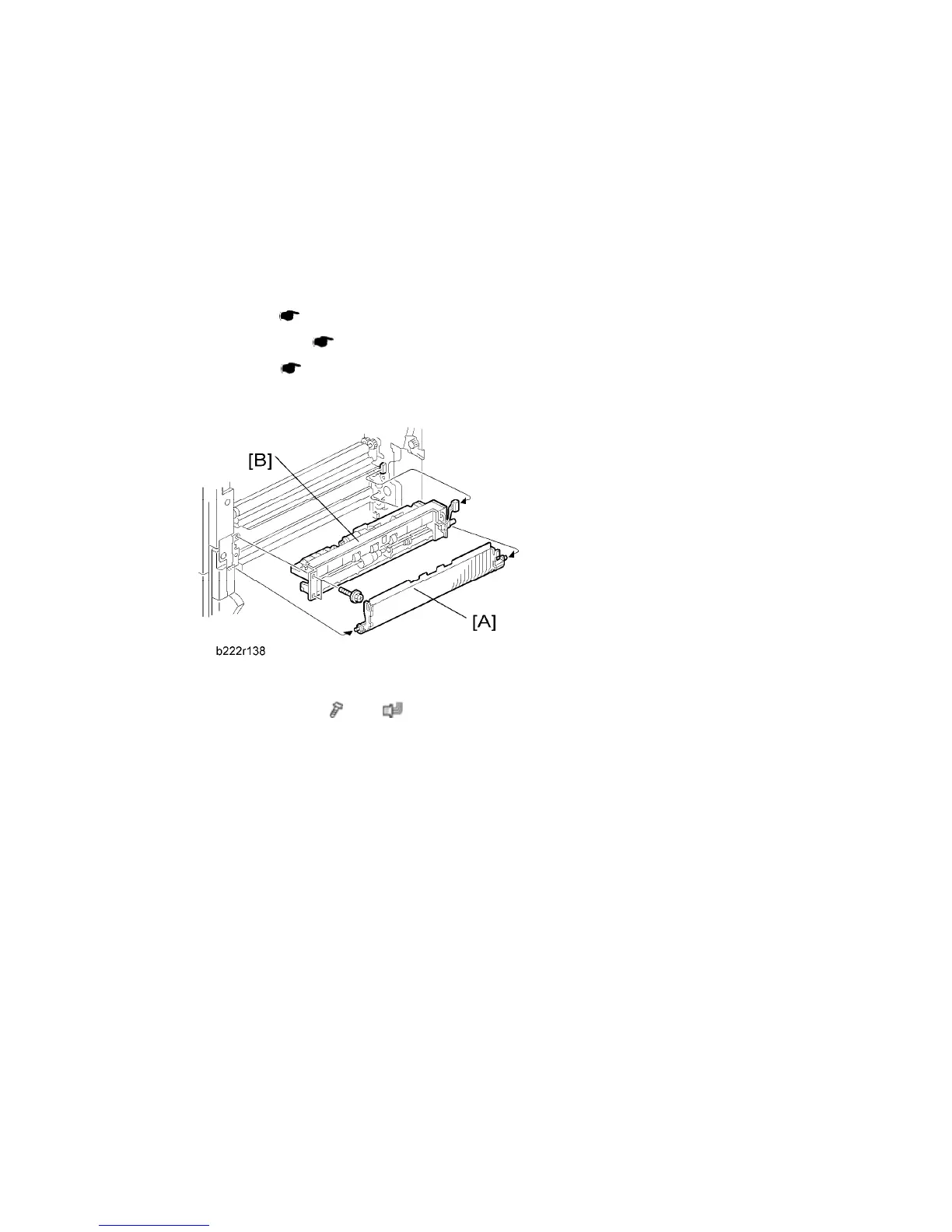

5. Paper guide plate [A] (hook x 2)
6. Paper feed unit [B] ( x 2, x 1)
