Scanner -1
D009/D011/D012/D013/D091/D092 4-14 SM

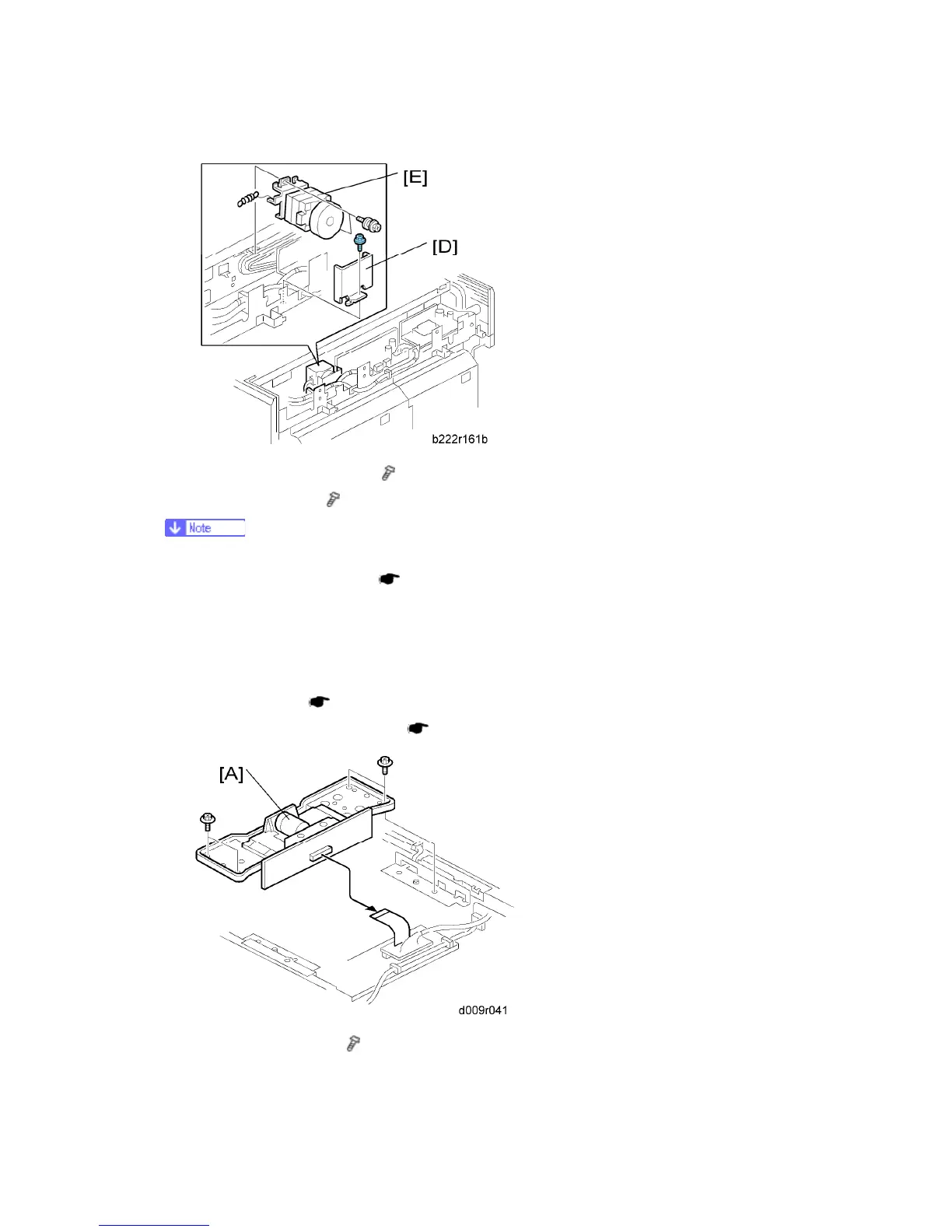

5. Scanner motor bracket [D] ( x 1)
6. Scanner motor [E] (
x 2, spring x 1)
 After replacing the scanner motor, do the image adjustments in the following
section of the manual (
p.4-101).
4.4.5 SENSOR BOARD UNIT (SBU)
Monochrome Scanner Model (D009/D012)
1. Exposure glass ( p.4-9)
2. Original length sensor bracket (
p.4-10)
3. Sensor board unit [A] (
x 4, flat cable x 1)
