D009/D011/D012/D013/D091/D092 4-72 SM
10. Push the projection [G].
11. Duplex unit (
x 3, ground cable x 1)

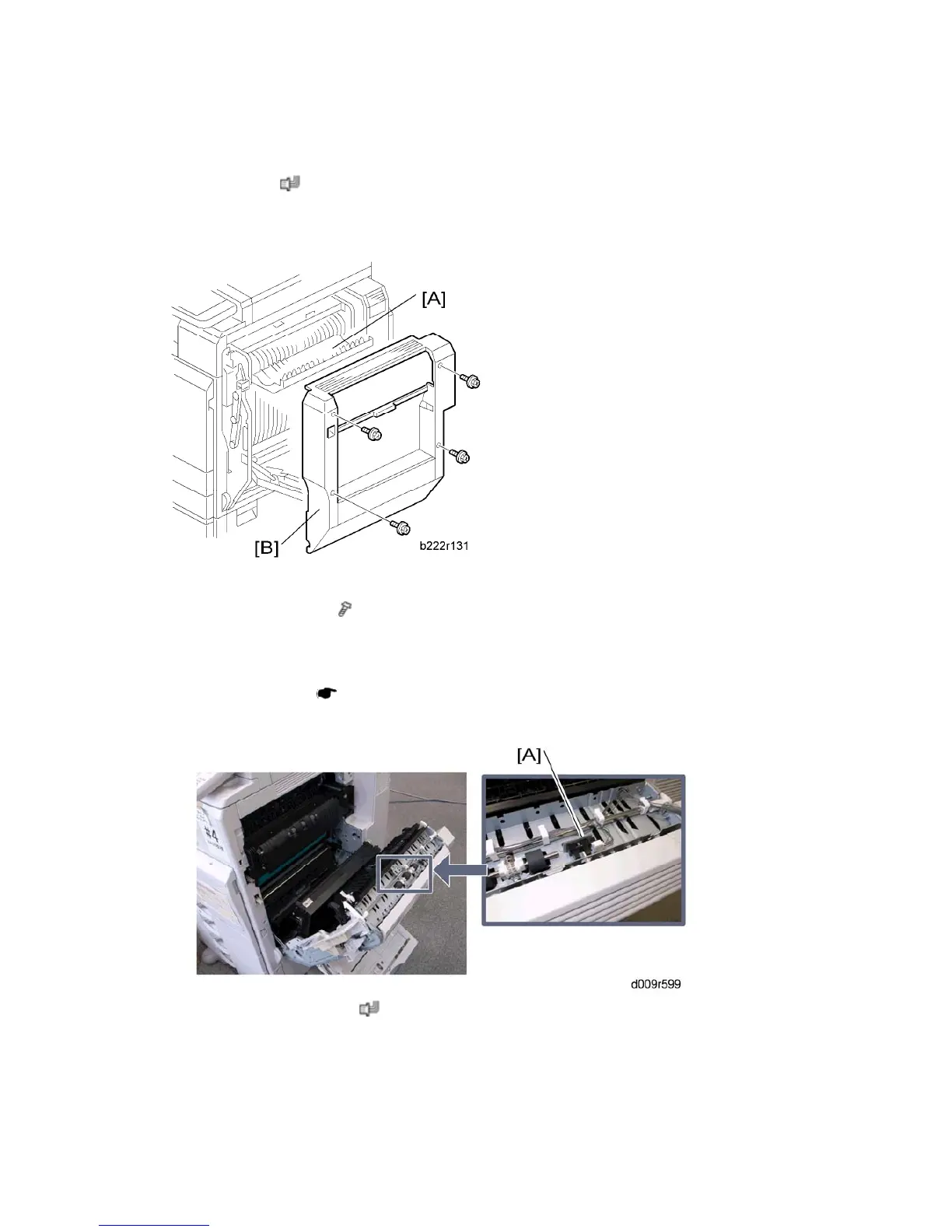

4.13.2 RIGHT DOOR COVER
1. Open the duplex door [A] and by-pass tray.
2. Right door cover [B] (
x 4)
4.13.3 DUPLEX DOOR SENSOR
1. Right door cover ( p.4-70)
2. Open the right door.
3. Duplex door sensor [A] (
x 1, hook)
