Component Layout

SM 11 D353

1200 Sheet

LCT RT3000

D353

2. DETAILS

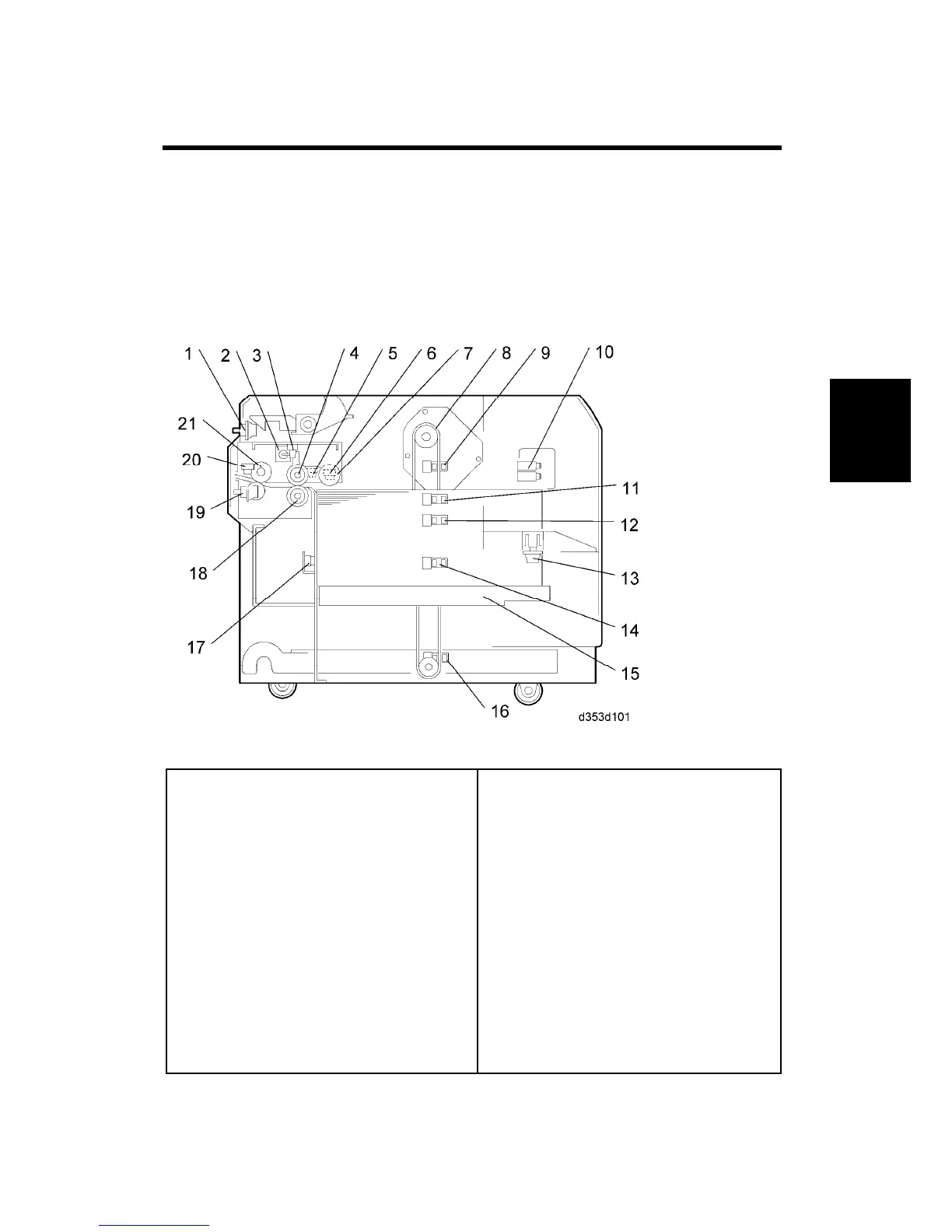

2.1 COMPONENT LAYOUT

2.1.1 COMPONENT LAYOUT

1. Rear LCT Set Switch

2. Pick-up Roller Solenoid

3. Tray Lift Sensor

4. Paper Feed Roller

5. Paper Feed Sensor

6. Paper End Sensor

7. Pick-up Roller

8. Tray Lift Motor

9. Paper Height Sensor 1

10. Interlock Switches

11. Paper Height Sensor 2

12. Sub Paper Height Sensor

13. Tray Down Switch

14. Paper Height Sensor 3

15. Paper Tray

16. Lower Limit Sensor

17. Stack Sensor

18. Separation Roller

19. Front LCT Set Switch

20. Relay Sensor 5

21. Relay Roller
