Tray Exit Sensor
SM 3 D386
Bridge Unit
BU3030
D386

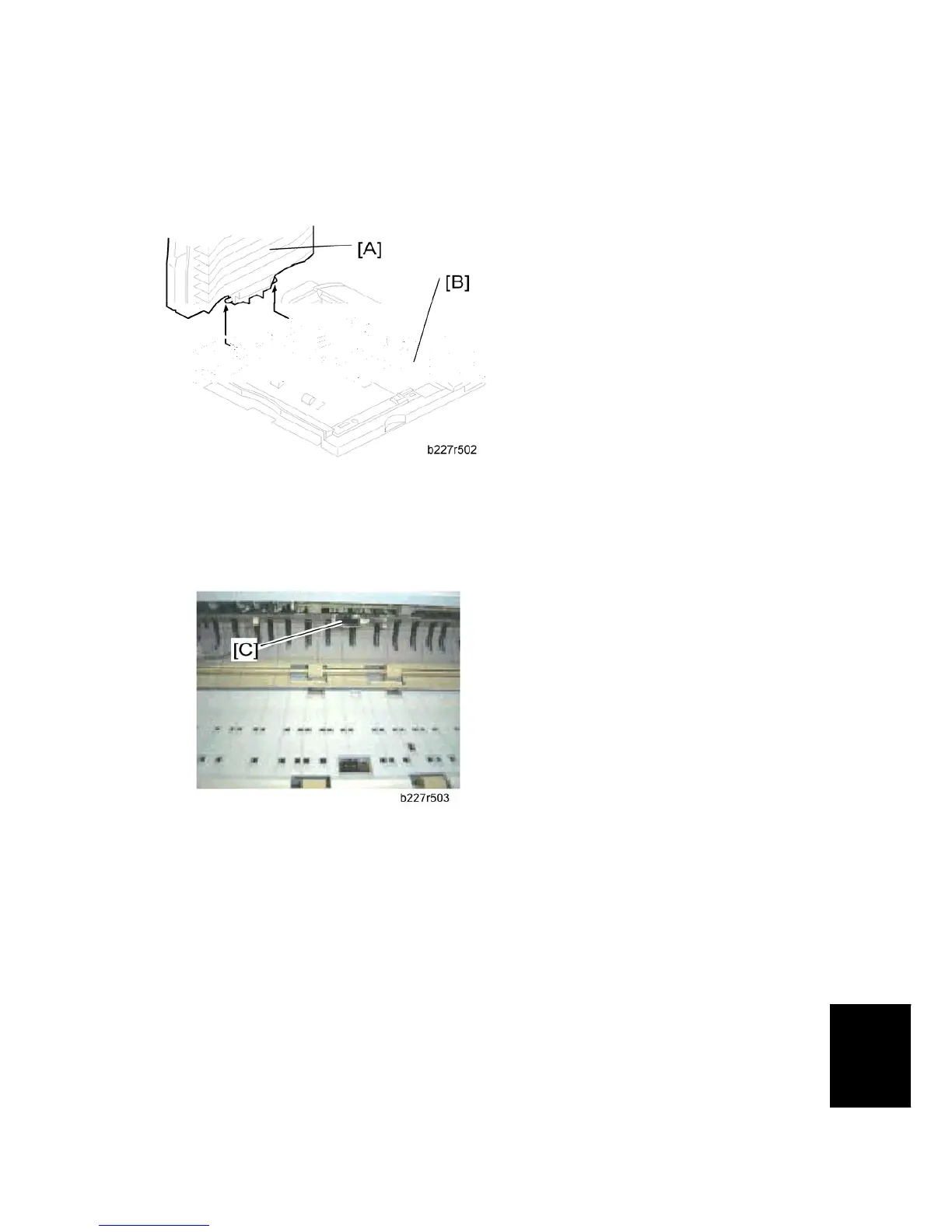

1.3 TRAY EXIT SENSOR
1. Bridge unit ( "Installation Procedure" in the base copier manual)
2. Rear cover ( "Bridge Unit Control Board")
3. Paper tray [A]
4. Exit guide [B] ( x 1)
5. Tray exit sensor [C] ( x 1)
