Drive Layout
D386 6 SM

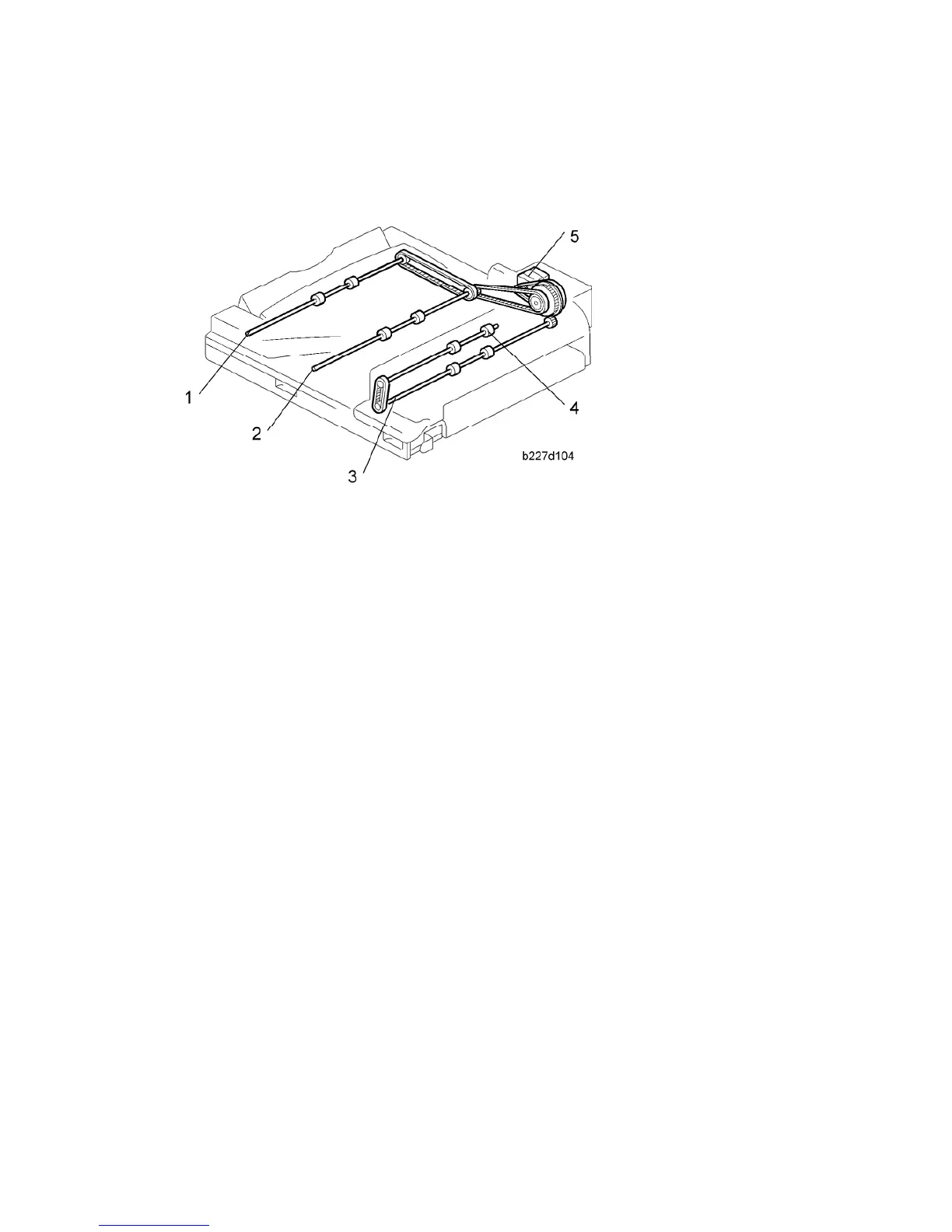

2.2 DRIVE LAYOUT
1. Left Exit Roller
2. 2nd Transport Roller
3. 1st Transport Roller
4. Upper Exit Roller
5. Bridge Unit Drive Motor
